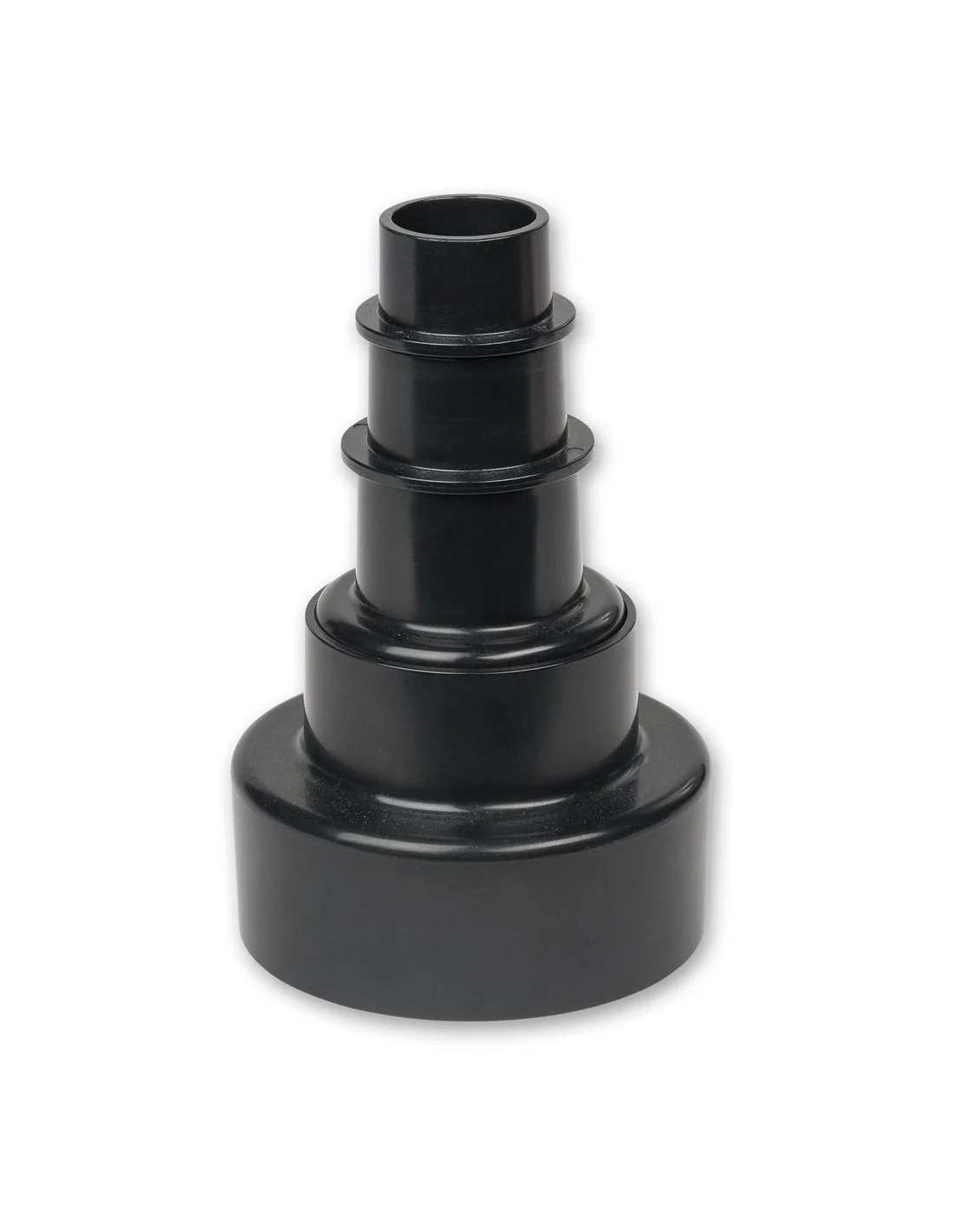

Axminster Modular Step Fitting 100-35mm

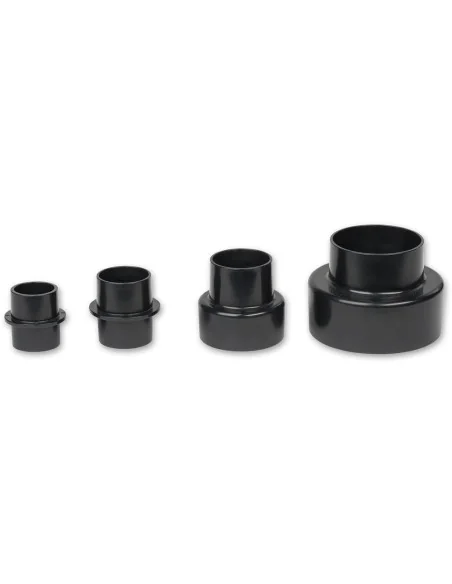

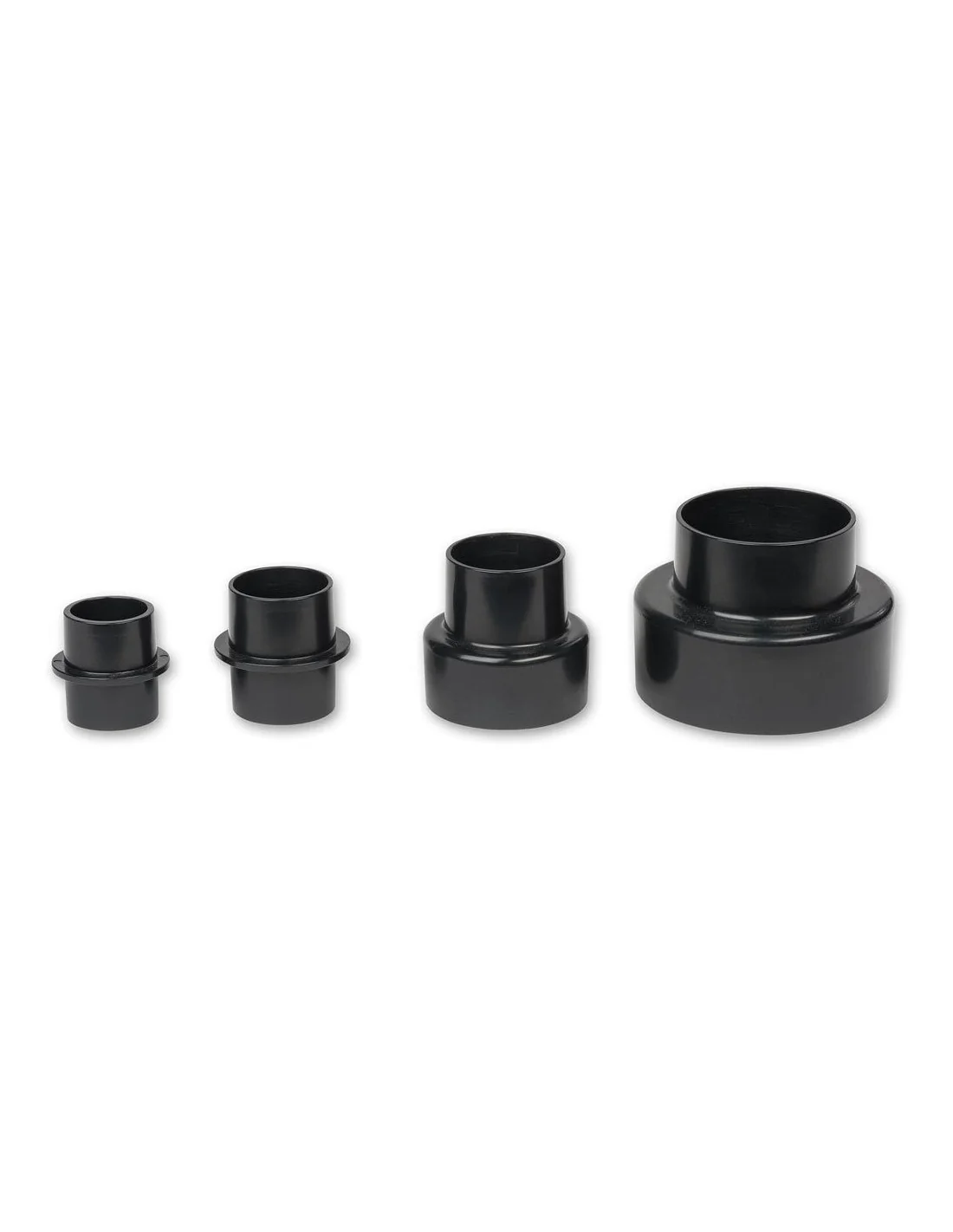

The Axminster Modular Step Fitting is a 4-section hose reducer used to join or adapt dust extraction or vacuum hoses of different diameters. The sections fit neatly one inside the other. You can use all four, just three, a pair or you can use them individually. Each section has a slight taper to accommodate variations in the internal hose diameter. For instance, the largest section has an outer diameter of 98mm and is a snug fit inside 100mm extractor hose. This Modular Step Fitting also provides an inexpensive and practical solution to connecting different size vacuum hoses in order to gain extra length. 1 = 35mm OD to 35mm OD x 43mm long 2 = 40mm OD to 40mm OD x 50mm long 3 = 45mm OD to 62mm OD x 59mm long 4 = 68mm OD to 98mm OD x 67mm long Note: All sizes are approximate.-bg
