    107715
    BGN4,160.94
    • Compact sized, medium duty panel saw for professional use
    • Surface ground cast iron table, 1,300mm sliding table with crosscut table
    • 254mm diameter TCT blade gives up to 80mm depth of cut

    Description

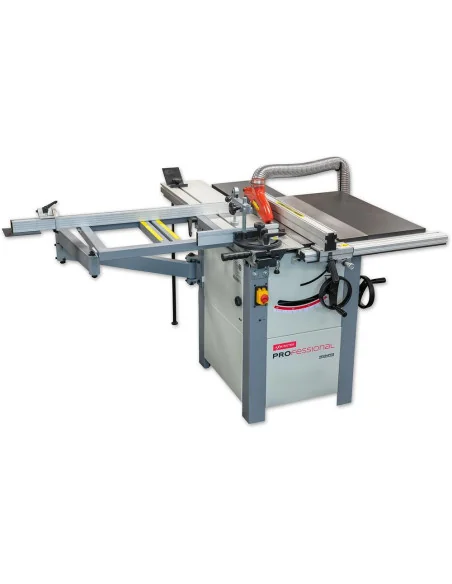

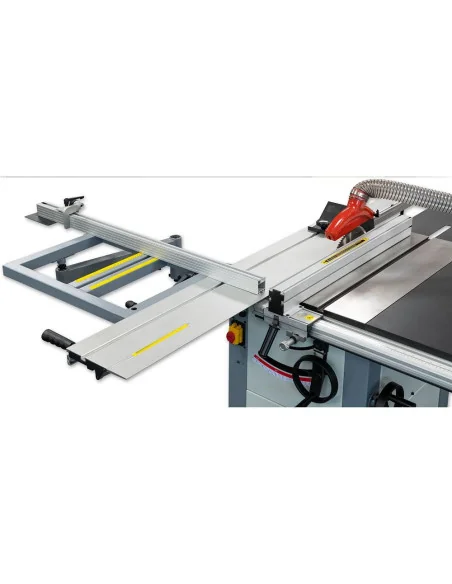

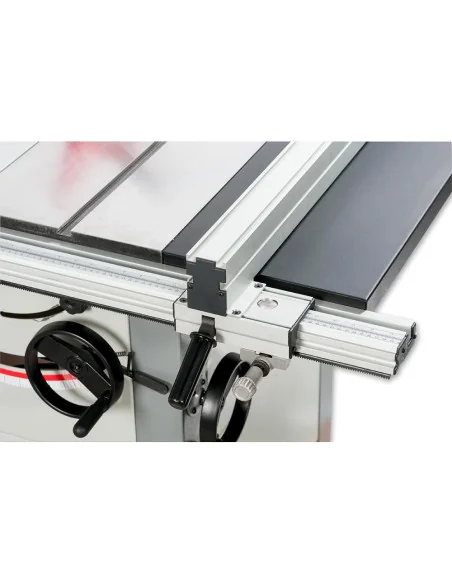

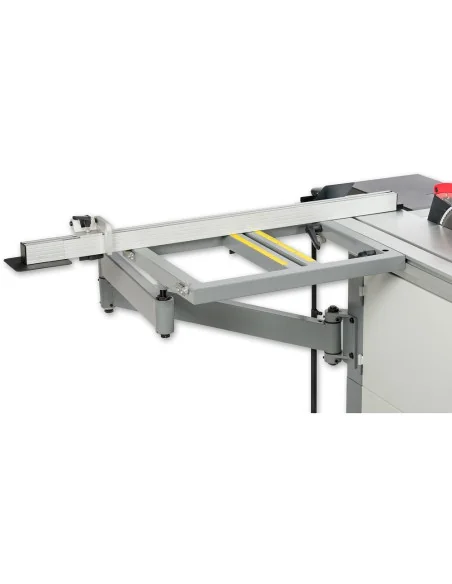

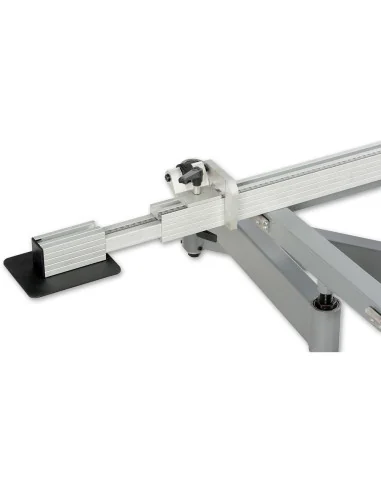

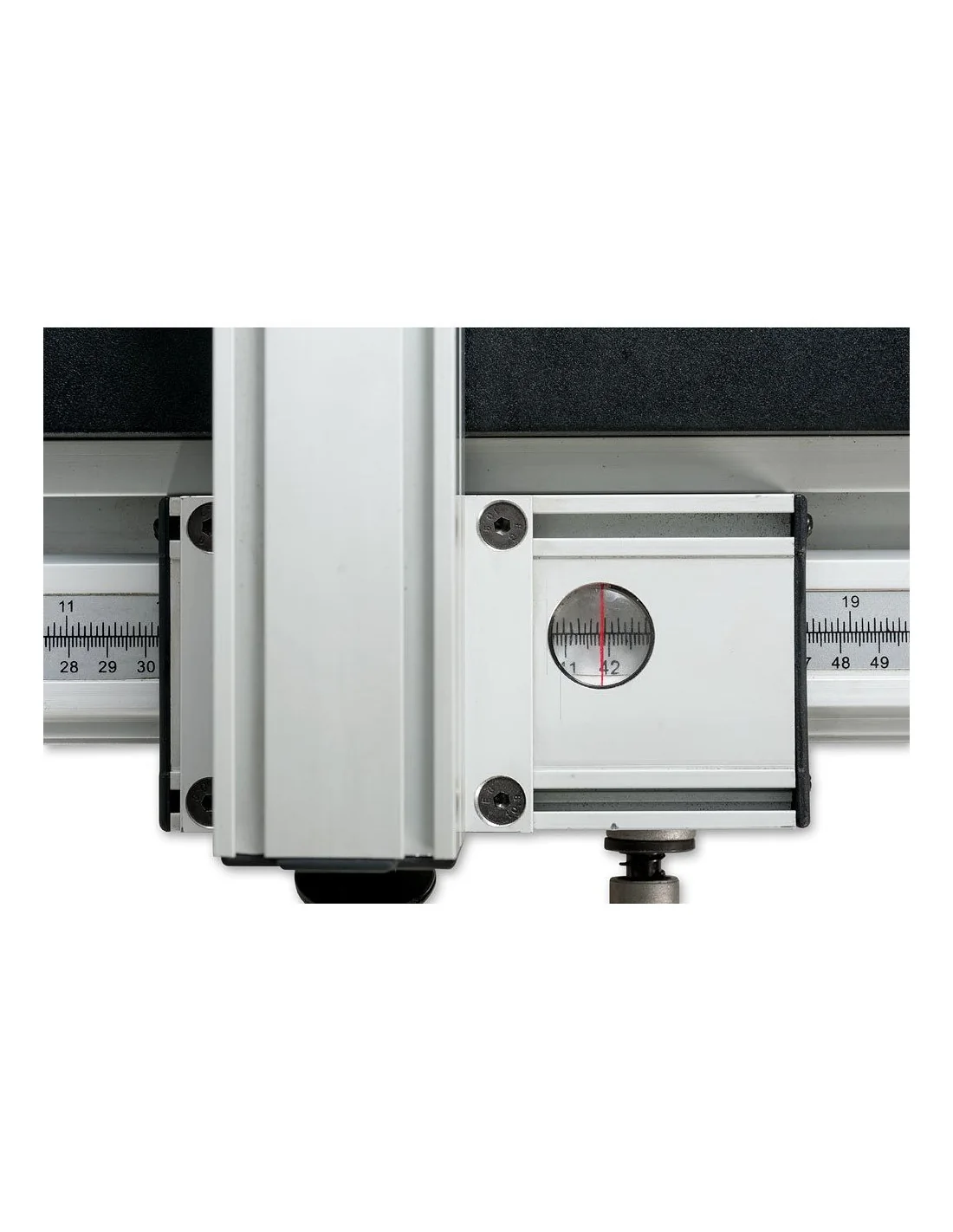

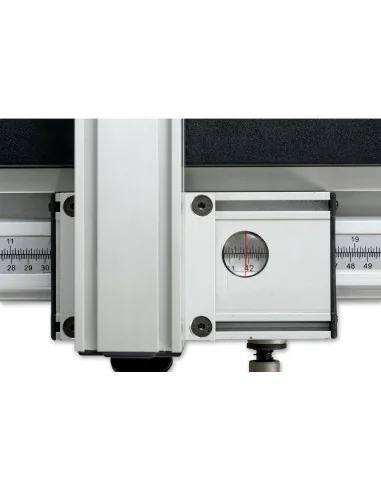

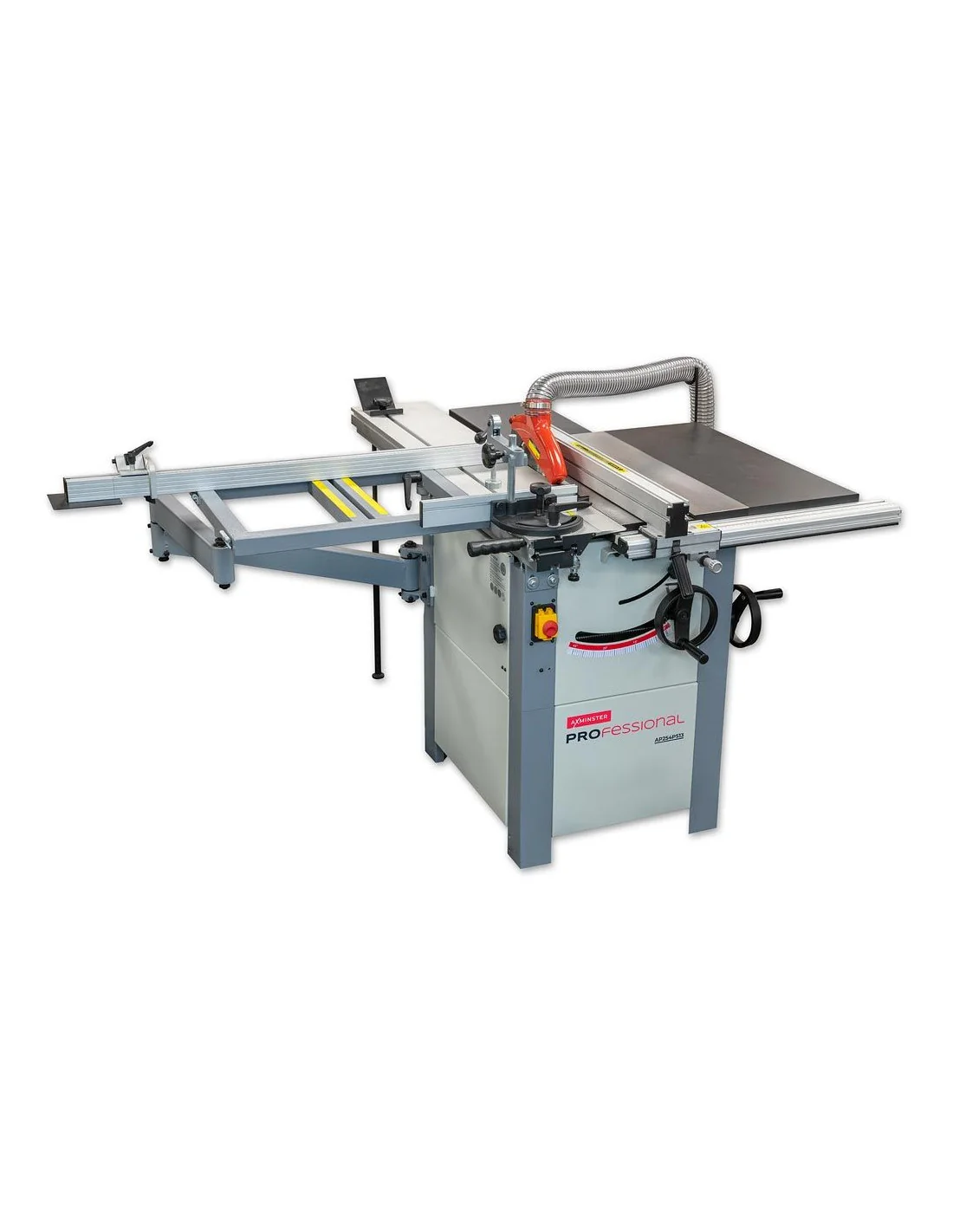

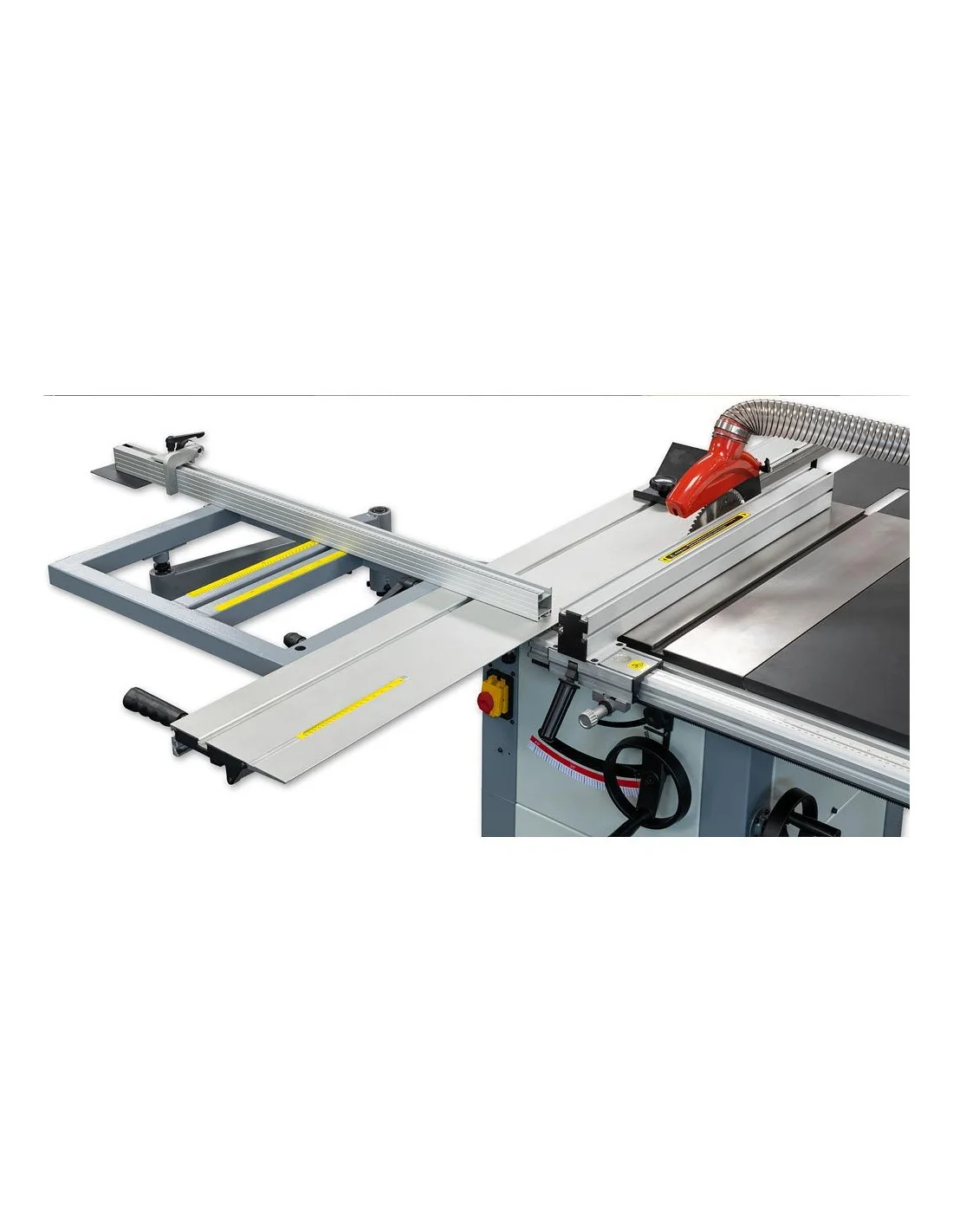

    The AP254PS13 is a compact panel saw fitted with a 1,300mm sliding table. The sliding table has a pivoting support leg and a crosscut table. The sliding table gives 1,250mm travel past the blade. The support table can be positioned anywhere along the side of the sliding table. A telescopic work support fence extends to 1,850mm, and fits either the front or rear of the crosscut table. This can easily be removed without tools for storage. The AP254PS13 has a cast iron and heavy gauge steel construction, which gives strength and vibration free operation. The 254mm blade offers a cutting depth of up to 80mm, powered by a high torque 2.2kW induction motor. The rip fence features a micro-positioning adjustment. There is a standard 19 x 10mm mitre fence slot in the main table. For smaller workpieces the mitre fence has an angle scale and cam-lock work clamp. Both the blade height and tilt controls are conveniently located and lock in position. Efficient dust extraction, smooth acting blade controls and an easily adjustable rip fence contribute to ease of use. Included as standard are a 254mm Axcaliber TCT fine cut main blade, a rear feed-off table and table support legs. N.B. This Machine requires a 16amp supply and it's recommended that a C Type breaker is used, if you are unsure please contact a qualified electrician.

    Product Details

    Blade Tilt
    0° to 45°
    Max Ripping Width
    600 mm
    Max Width of Cut with Fence
    600 mm
    T Slot Size
    19 mm x 9.5 mm (3/4" x 3/8")
    Sliding Table Dimensions
    1,300 mm x 270 mm
    Sliding Table Stroke
    1,250 mm
    Table Size
    Main 760 mm x 350 mm, Side ext 760 mm x 300 mm
    Blade RPM
    3,500 rpm
    Table Height
    865 mm
    Max Depth of Cut @ 45º
    60 mm
    Overall L x W x H
    3,210 mm x 3,720 mm x 1,120 mm
    Dust Extraction Outlet
    100 mm
    Plug Fitted
    UK 16A Plug
    Power
    2.2 kW
    Nett Weight
    155 kg
    Rating
    Trade/Professional
    Min Extraction Airflow Required
    850 m³/hr
    Sound Power Level LWA [Uncertainty K]
    102 dB(A) [2.0 dB]
    Sound Pressure Level LpA [Uncertainty K]
    89 dB(A) [2.0 dB]
    Voltage
    230 V
    Blade Diameter
    254 mm
    Bore Size
    30 mm
    Max Depth of Cut @ 90º
    80 mm
