Axminster Workshop AW315PD Bench Pillar Drill - 230V
    Axminster Workshop AW315PD Bench Pillar Drill - 230V
    Axminster Workshop AW315PD Bench Pillar Drill - 230V
    Axminster Workshop AW315PD Bench Pillar Drill - 230V
    Axminster Workshop AW315PD Bench Pillar Drill - 230V
    Axminster Workshop AW315PD Bench Pillar Drill - 230V
    Axminster Workshop AW315PD Bench Pillar Drill - 230V
    Axminster Workshop AW315PD Bench Pillar Drill - 230V

    Axminster Workshop AW315PD Bench Pillar Drill - 230V

    107691
    BGN855.44
    • Sturdy cast iron construction with quiet 550W induction motor
    • 12 belt speeds 210-2,580 rpm for drilling wide variety of materials
    • Convenient rack and pinion table height adjustment

    Description

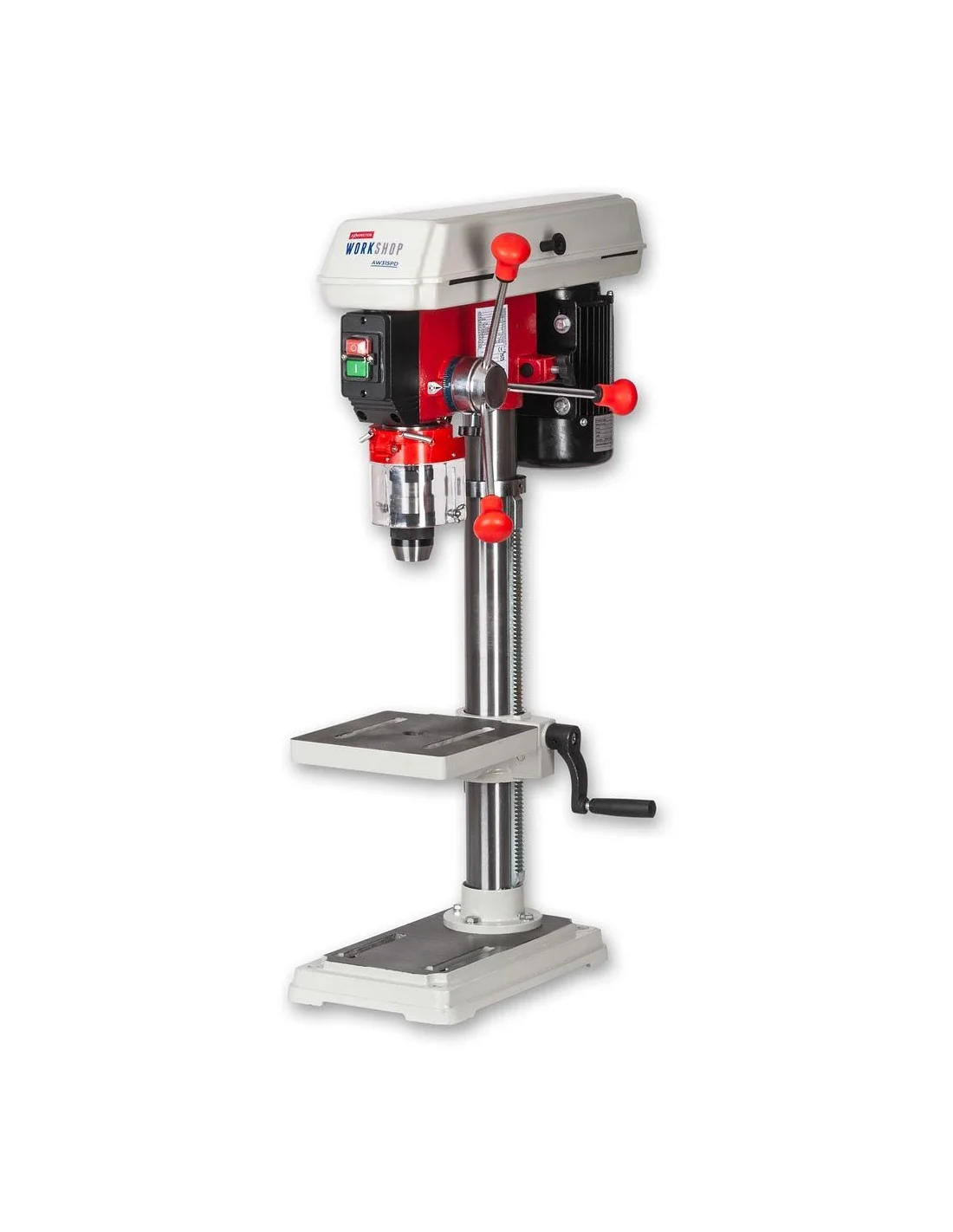

    A good size bench pillar drill enabling you to drill accurate holes at consistent depths and angles. Made from cast iron and machined steel it’s sturdy, stable and strong. The keyless chuck is an excellent feature with a capacity of 1 to 16mm. Powered by a 550W induction motor, there are 12 belt speeds to choose from between 210-2,580rpm. The down feed is fitted with soft grip handles and there is a convenient drilling depth control. Table height is controlled via a rack and pinion system, the whole table assembly can be swivelled away to allow the base to be used as a work support. A front mounted NVR switch and the adjustable chuck guard add to the convenience of use. The belt cover has a safety switch to ensure safe speed changing. A great choice for any hobby workshop. Please note: the AW315PD is not suitable for a morticing attachment.

    Product Details

    Chuck Type
    keyless
    Collar Size
    60 mm
    Diameter of Column
    60 mm
    Max Chuck to Base
    430 mm
    Max Chuck to Table
    315 mm
    Max Drilling Mild Steel
    16 mm
    Speed Range
    210 - 2,580 rpm (12)
    Throat Depth
    127 mm
    Table Size
    198 mm x 198 mm
    Base Size
    340 mm x 220 mm
    Table Tilt
    45° - 0° - 45°
    Chuck Capacity
    1 mm to 16 mm
    Chuck Travel
    60 mm
    Overall L x W x H
    520 mm x 260 mm x 840 mm
    Plug Fitted
    UK 3 pin plug
    Power
    550 W
    Nett Weight
    37 kg
    Rating
    Home Workshop
    Voltage
    230 V

    Attachments
