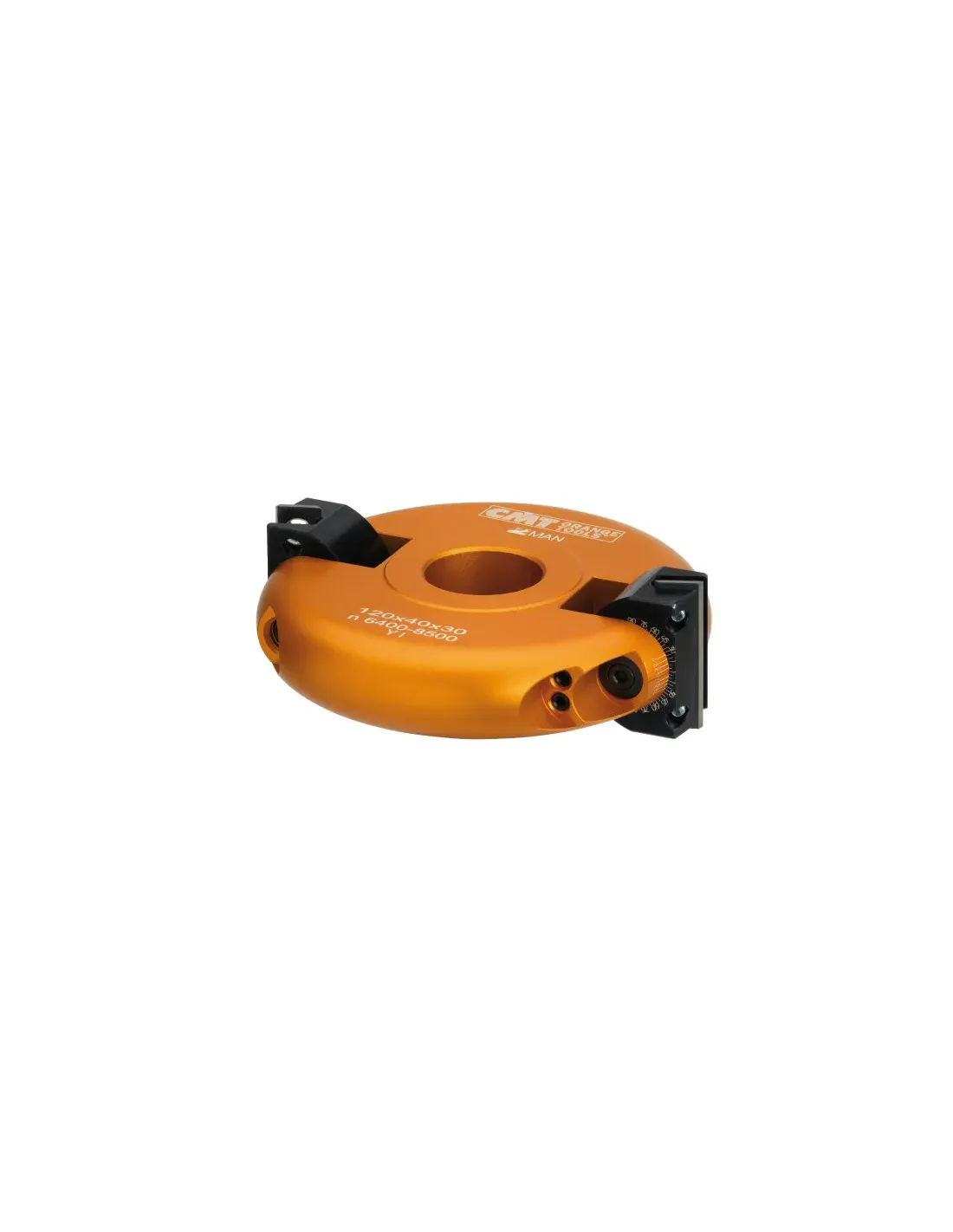

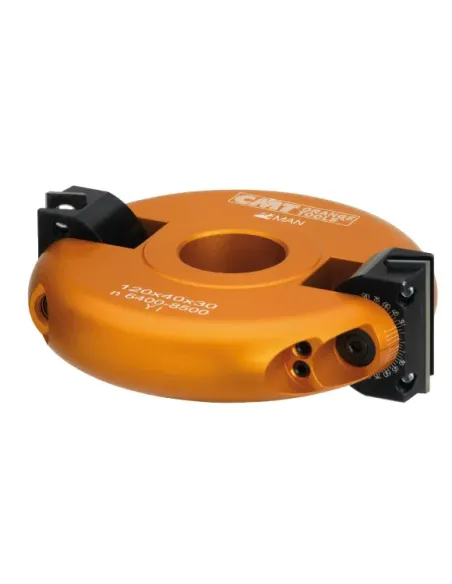

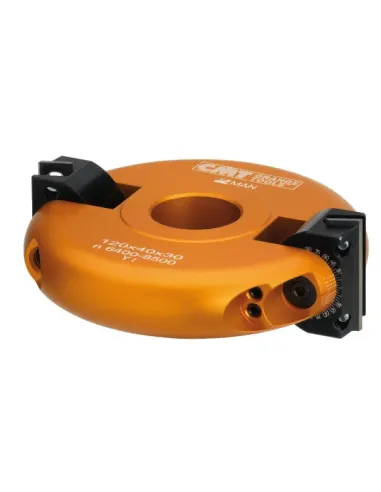

CMT Adjustable Chamfer Cutter Head MAN

Adjustable CMT chamfer cutter is an ideal for tool for production of cabinet doors and drawers. The cutter comes fitted with 2 carbide knives and mechanical tilting of segments thanks to stops every 7,5°. Achieve maximum accuracy using a vernier on both segments. Hardened aluminum alloy body. Comes fitted with 40 mm knives and a Torx 20 spanner all fitted in a fine plastic case. Ideal adjustable chamfer cutter for medium and large sized spindle moulders and tenoning machines for soft and hard wood. Bore size D=30, 40 and 50 mm.

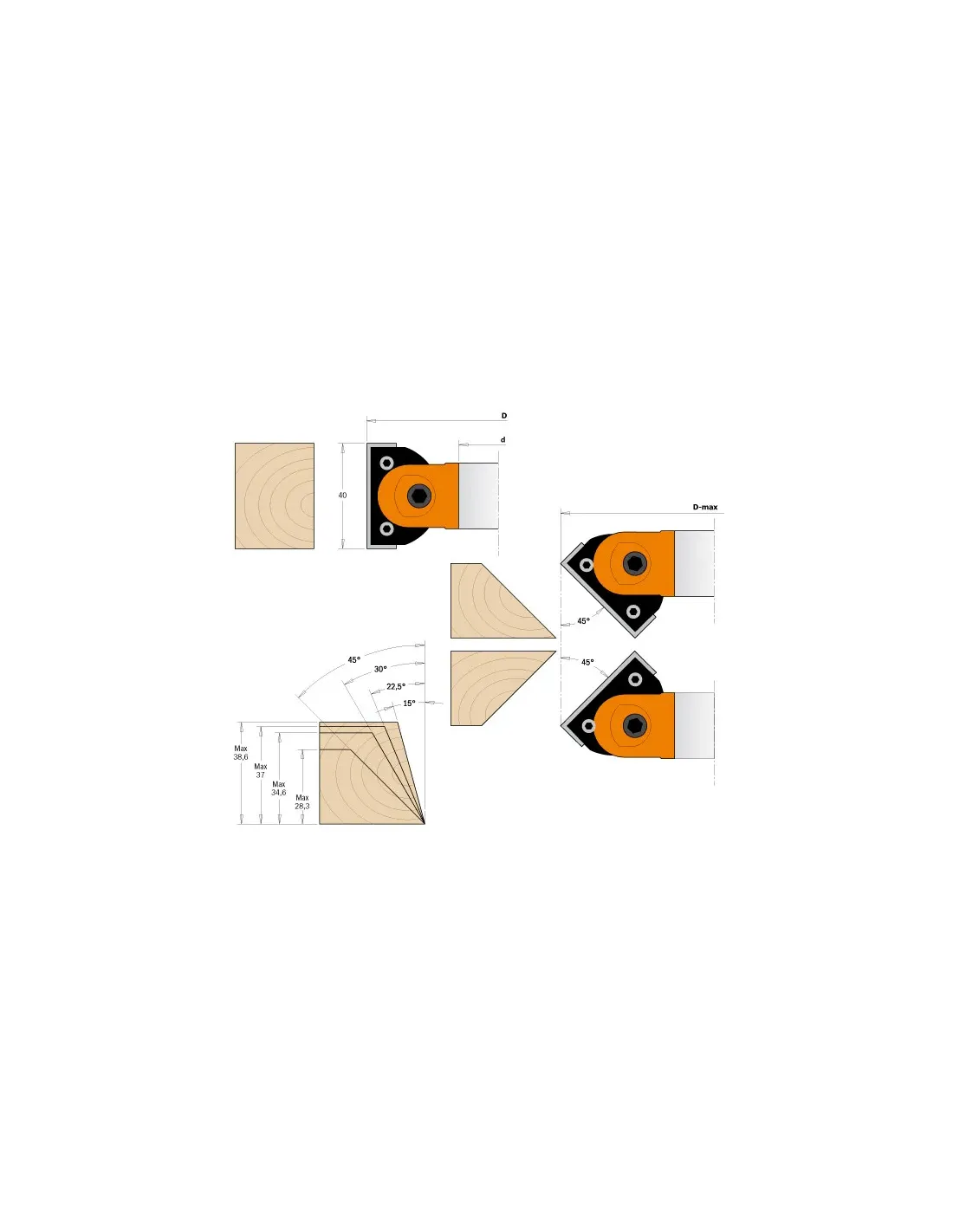

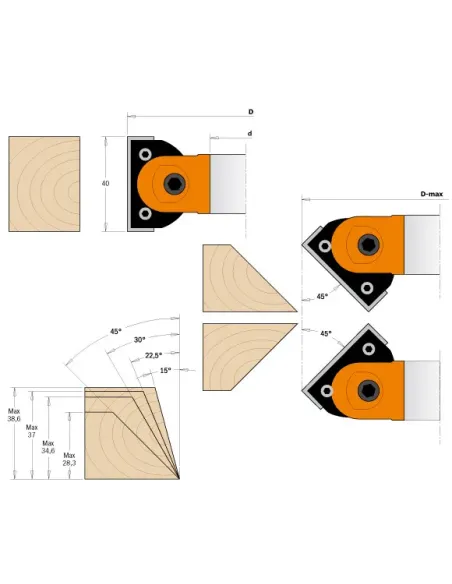

Parameters: 2 knives, angle of + 45 ° / -45 °, D120 - speed of 7000-9000 rpm, D145 - speed of 4800-7200 rpm., manual feed MAN.
