• The World's first cordless, portable edgebander with a rechargeable battery.
• Gradual feed speed 2-6/min with a control on the handle.
• Digital display with temperature control, and a feed speed and battery indicator.
• Glues ABS, PVC or veneers up to 3 mm thick.
• Innovative glue application system, surpassing double glue application.
• Firm and clean edges without overflows.
• Straight and shaped workpieces up to 65 mm thick.
• Edgebanding in +/-15° degrees.
• Solid build of the sliding support table with a scale of workpiece thickness.
• Improved function of corner banding.
• Very fast warm up onto operating temperature.

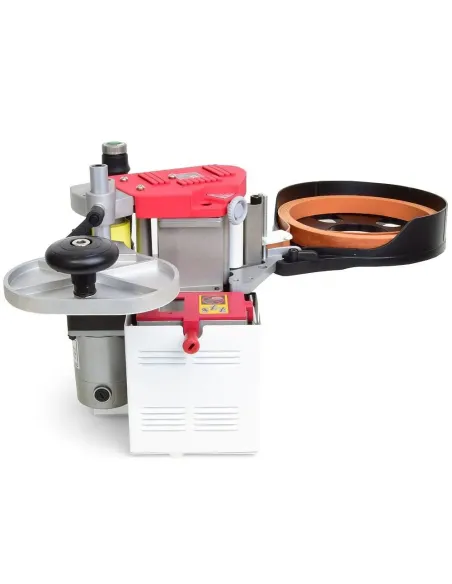

A revolutionary range of state-of-the-art IGM edgebanders with hot melt glue is designed for quick banding of 0,4 - 3 mm thick ABS, PVC, laminated furniture edges or veneers, on straight or shaped workpieces of thickness from 10 mm to 65 mm. The Granular glue is rapidly melted in a melting chamber and is applied, through a new sophisticated system, onto the tape, which is perfectly pressured against the workpiece with rubberized rollers. The tape sticks firmly and wholly on the banded edge, resulting in a firm and clean bond along the entire width of the tape.
The New generation IGM edgebanders feature many unique and patented features you won't find anywhere else. All parts of the edgebander are precisely machined and accurately assembled. This guarantees a firm and clean bond of furniture edges and a tape with minimal overflow.

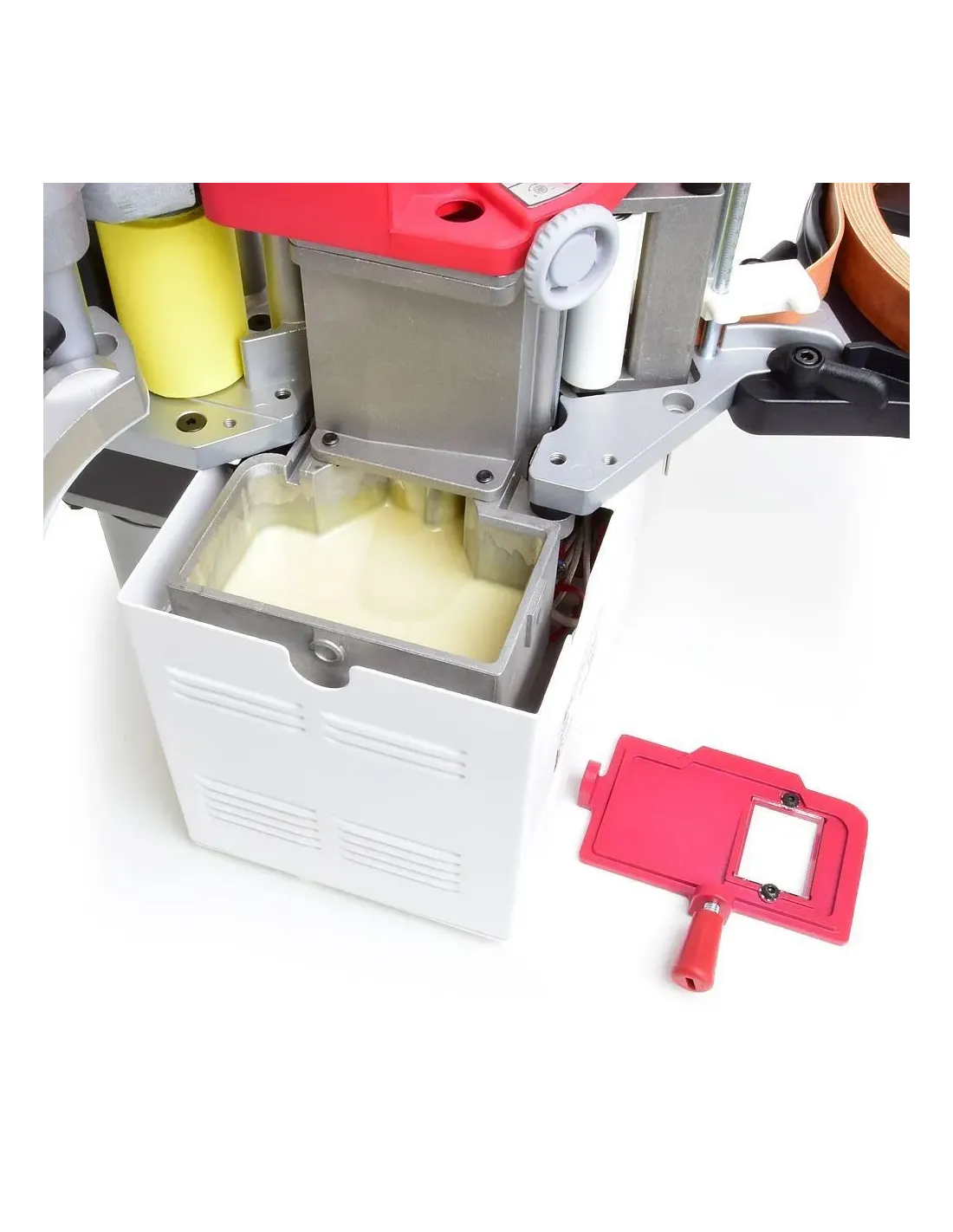

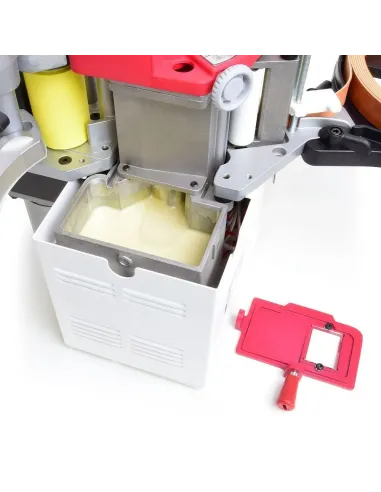

New generation quick-heating system melts the glue in 5 minutes from the start. In addition, if you refill the glue into a half-full tank, the thermostat keeps the machine in operation. The Edgebander features fluent application of glue, which can be regulated easily with controller. Innovative glue application system, better than double application, precisely and uniformly applies glue onto the tape without skipping, overflows or contamination of the machine.

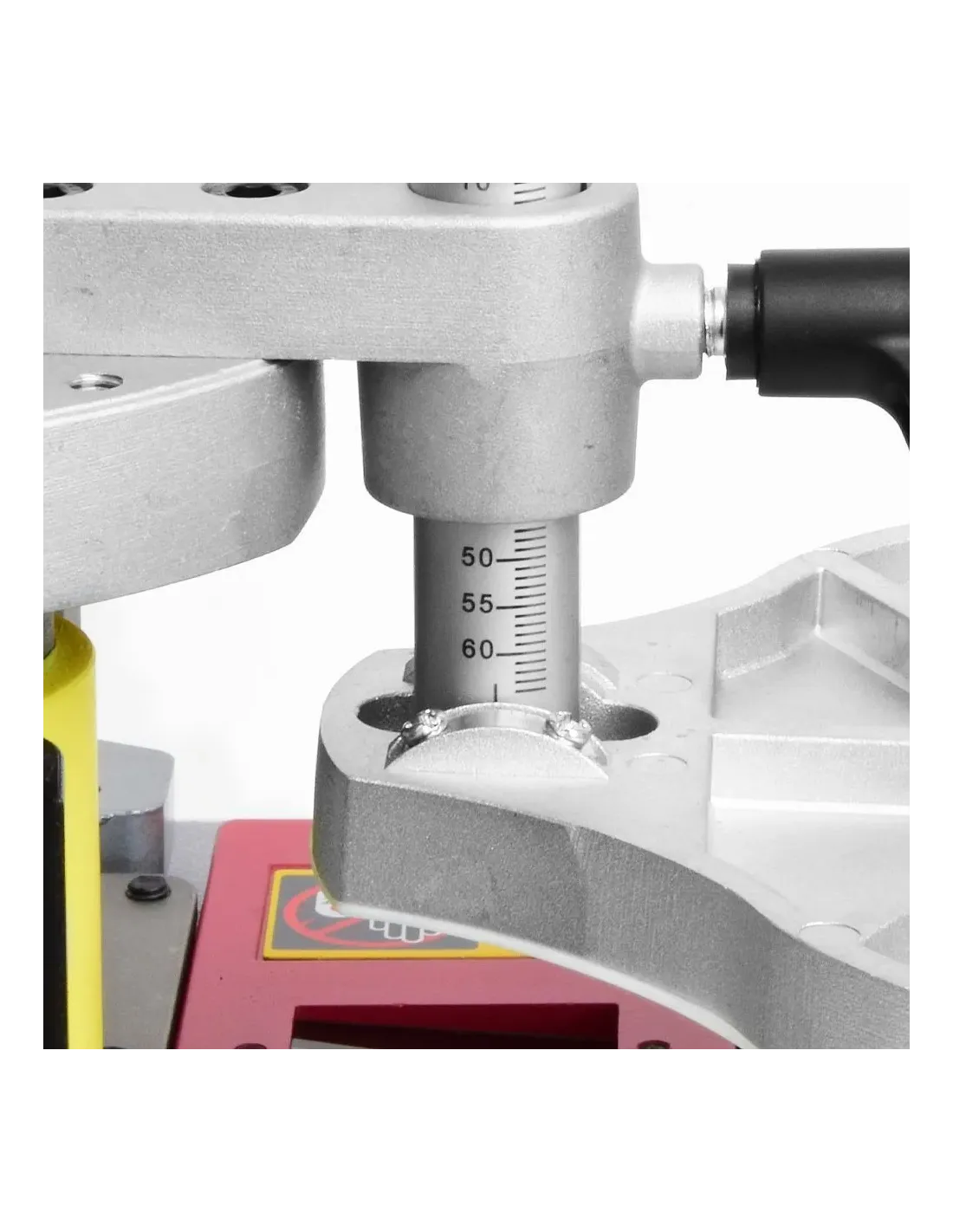

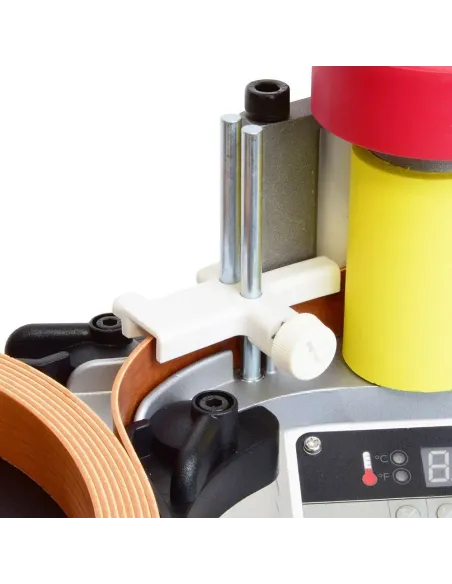

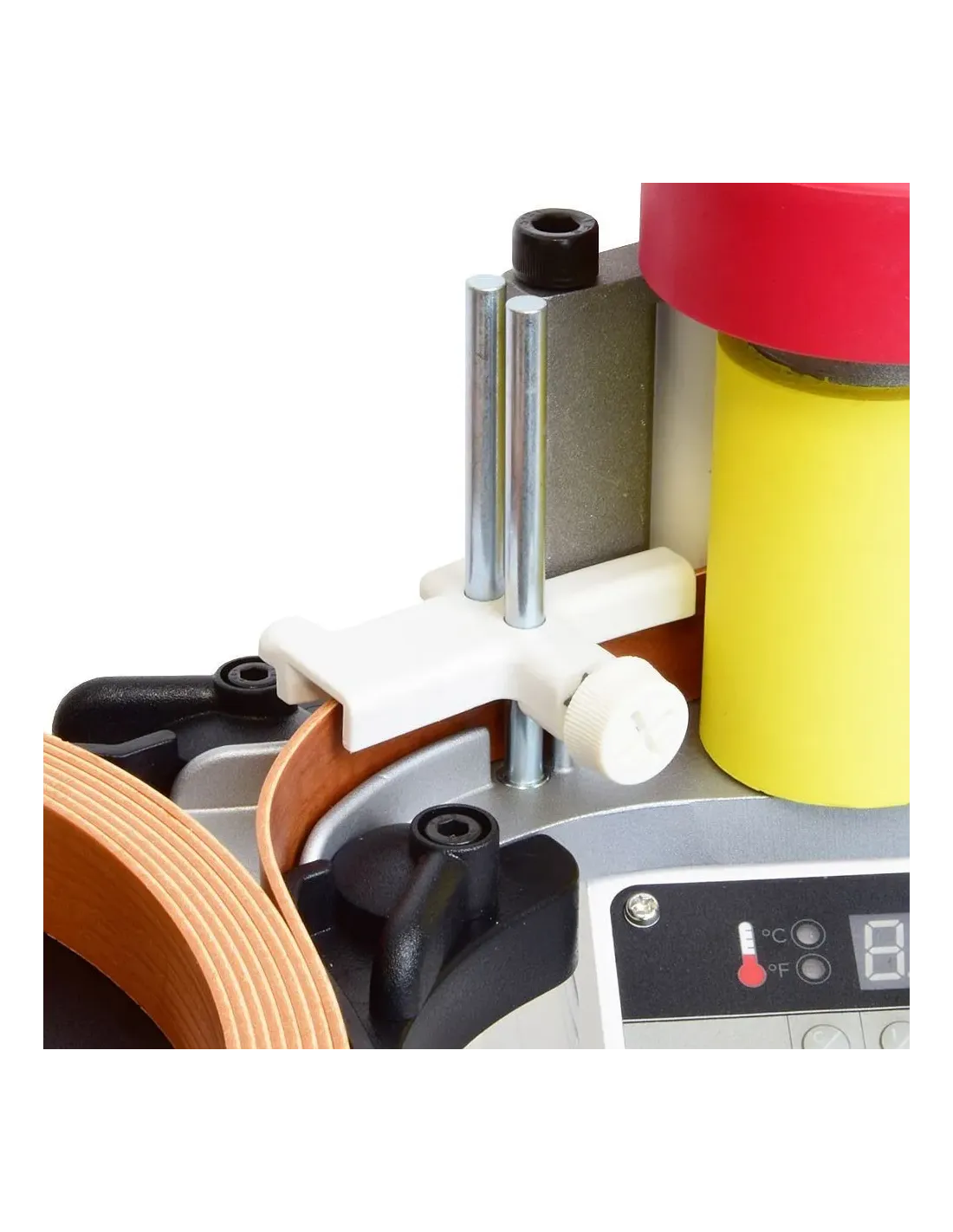

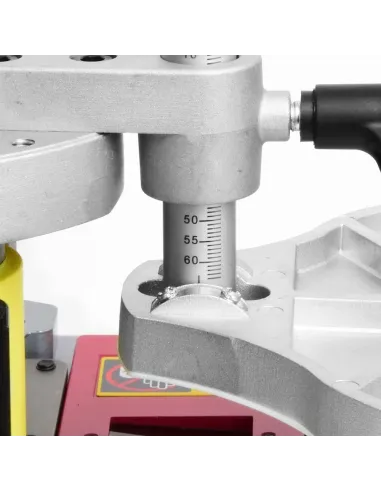

The tape is accurately guided through an adjustable width measurer ( resolution 1 mm), allowing precise and non-problematic guiding of the tape towards the cylindrical tape applier. Two rubberized ergonomic handles enable precise guidance of the machine along the workpiece. The support table features a special slippery layer allowing simpler feed without scratching the workpiece. It is also fitted with a scale to precisely adjust the workpiece thickness and is placed in a solid holder with the option of +/-15° tilt, allowing accurate edgebanding of bevelled surfaces. The lid handle can be placed into two positions depending on the type of banding.

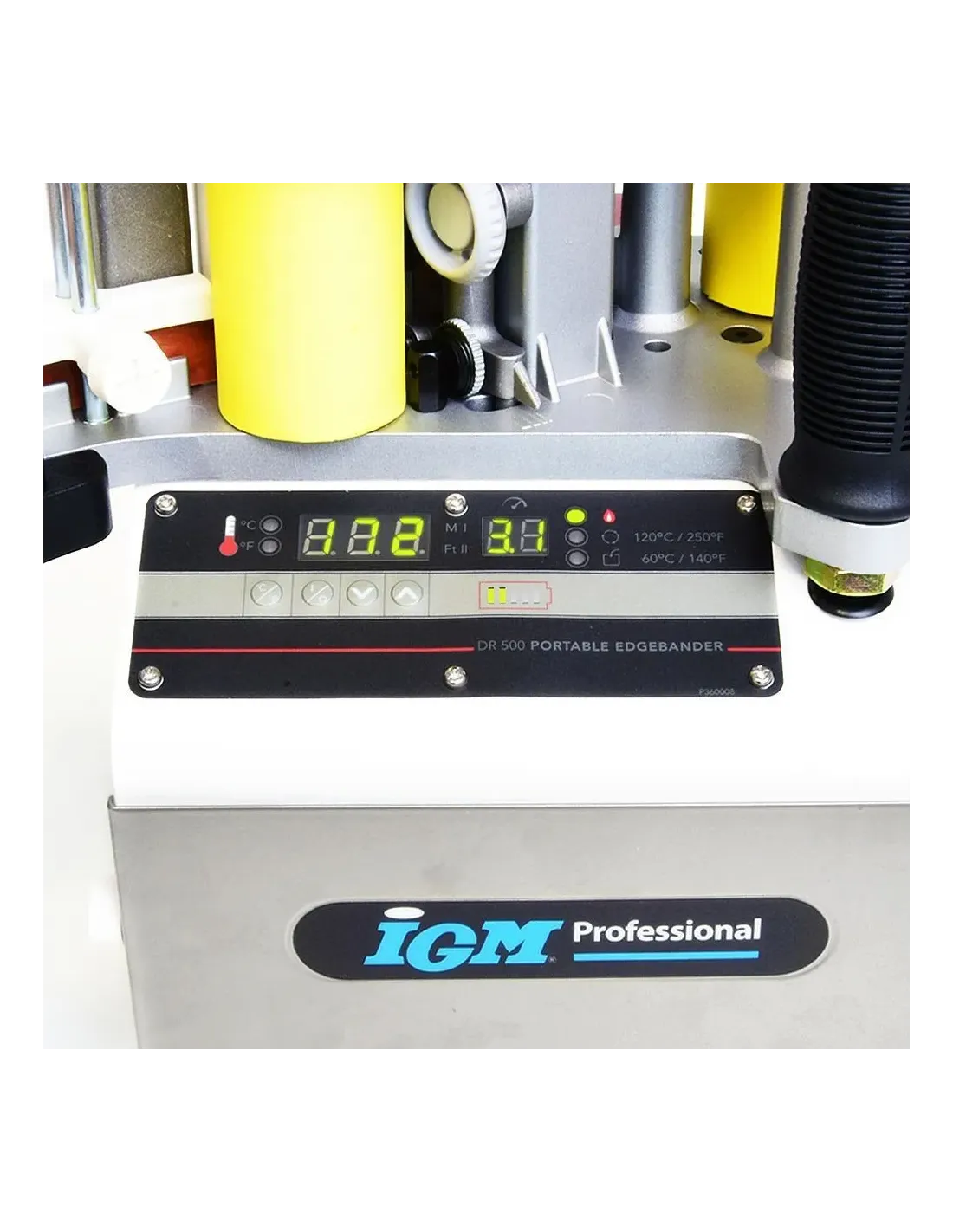

The DR500 edgebander features a modern digital control display for selecting a temperature and feed rate, placed horizontally, allows full control of the edgebanding process. Exactly and accurately set the desired temperature. Temperature ranges from 120 ° C - 200 ° C ± 1 ° C. The feed rate can be established on the handle and ranges from 2-6/min securing optimum speed and control over the operation.
The DR500 is the world's first cordless edgebander with a rechargeable battery, providing maximum comfort and control. After disconnecting the power cord, the battery powers the standard feed and glue application. You can also flick a switch and turn on the melting chamber, preventing the glue from getting cold, when having to band long pieces or during prolonged work without a power cord.

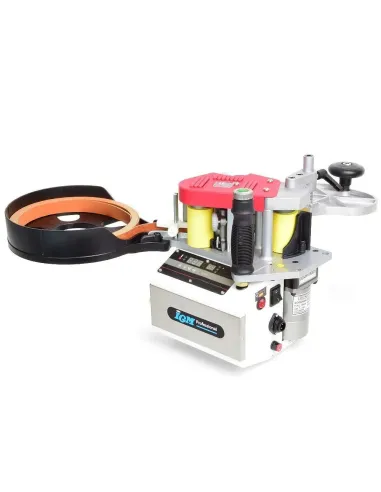

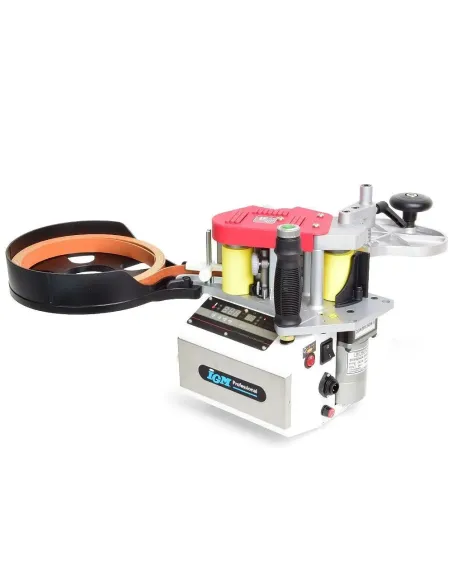

A state-of-the-art edgebander with an option of cordless banding, perfect for all types of banding, either out on site, or in your workshop.

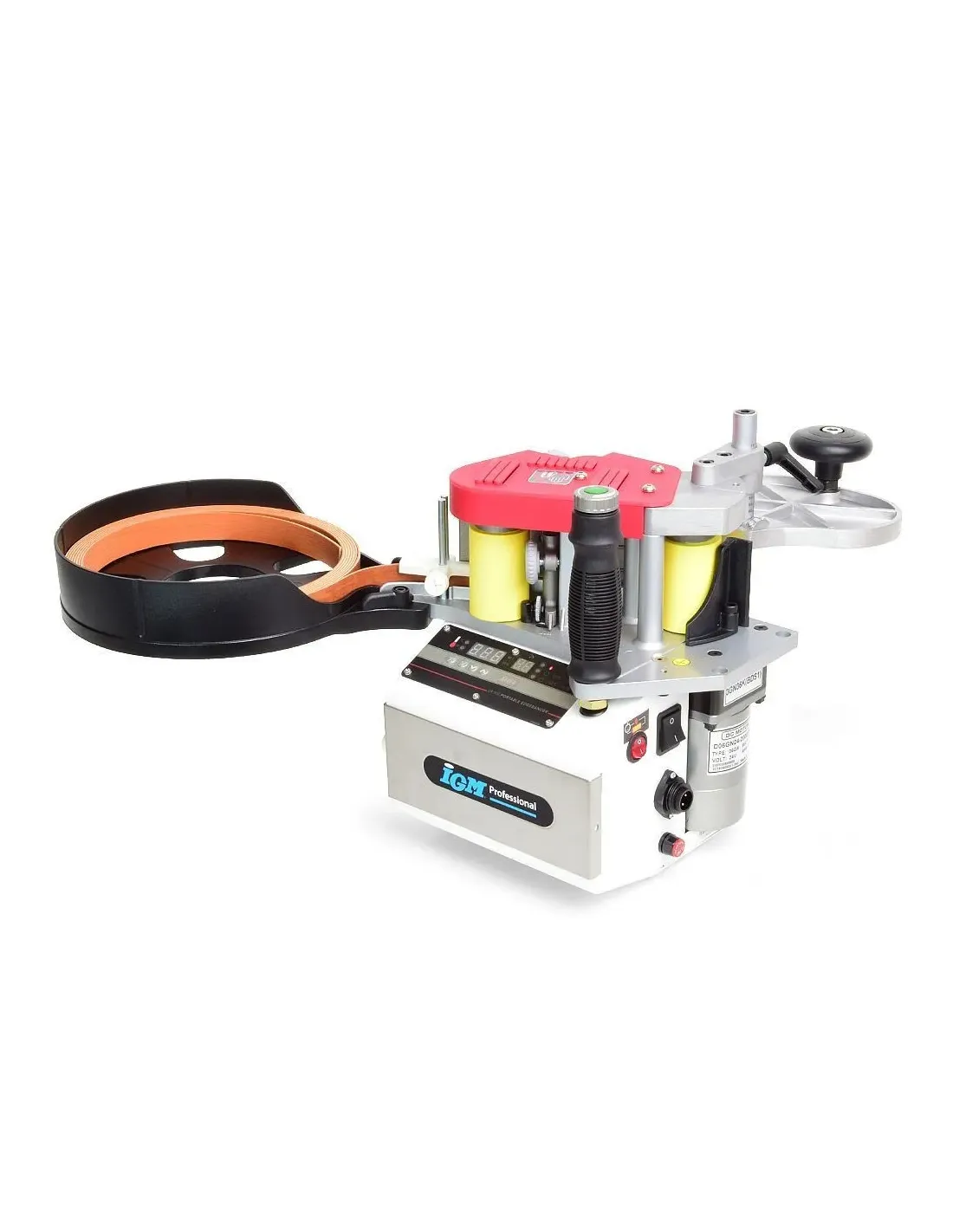

World's First Cordless Edgebander with a Rechargeable Battery
Type: DR500
Rating: Professional
Power: 855 W ( 230 V)
Edge Thickness: 0,4 - 3 mm
Edge Height: 10-65 mm
Bevel Surfaces: 75°- 105°
Min. Inner Workpiece Radius: 25 mm
Feed Speed: 2-6 m/min.
Adjustable Temperature: 120 - 200°C
Recommended Melt Temperature: 140°C
Glue Tank Capacity: 400 ml
Length x Width x Height: 340 x 300 x 350 mm
Weight: 9,8 kg
Supplied with:

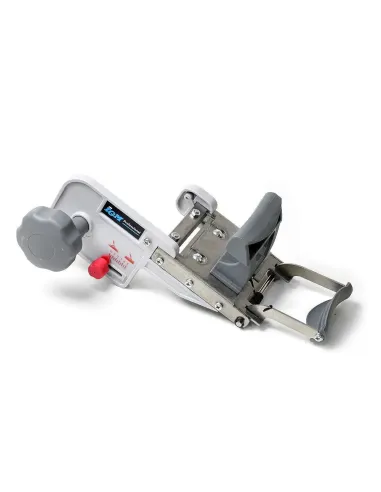

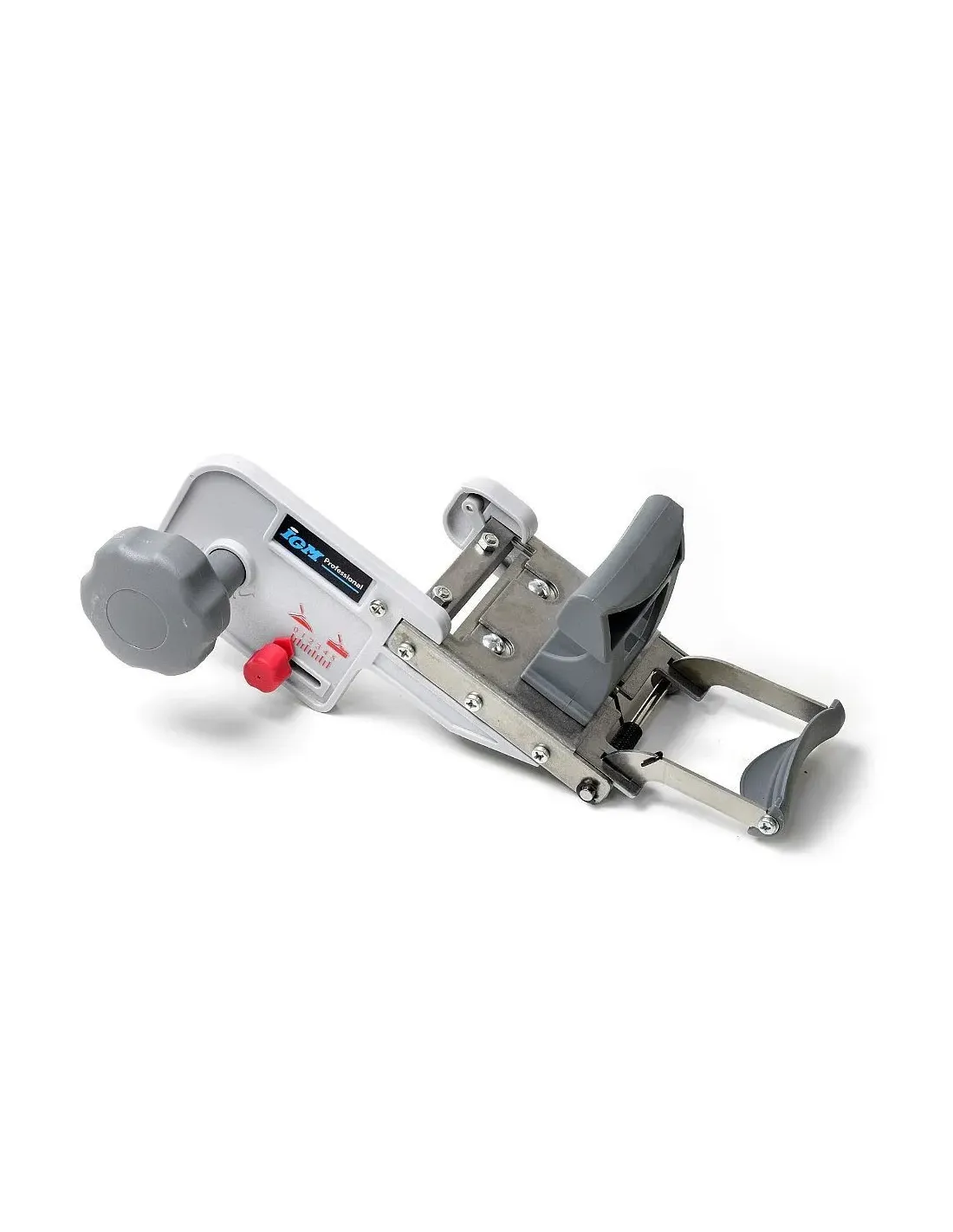

• M951 End trimmer for shaped and straight panels
• BC25 Tape holder
• Rechargeable battery
• Set of spanners
• 800g of high-quality glue
• Corner Guide
• Operating instructions

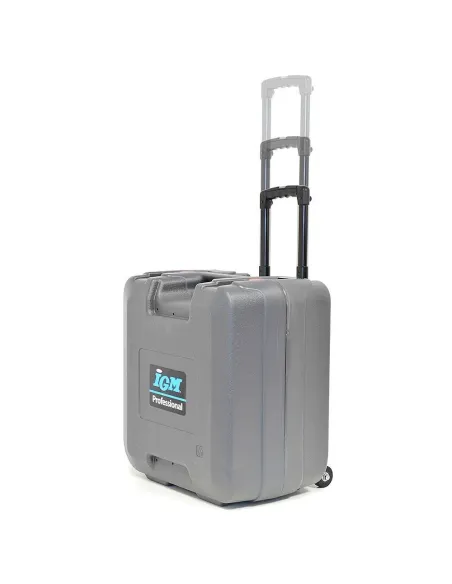

Packed in a plastic transport box with wheels for safe transport.
