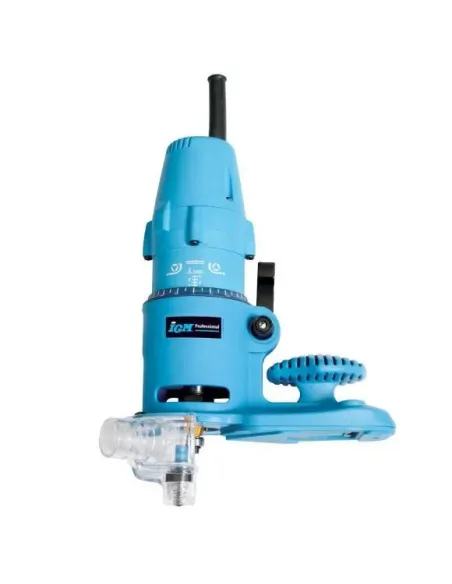

IGM PD80 Edgeband Trimmer

• Effective banding and trimming of edges under a radius or an angle.
• Depth setting with a convenient scale fitted mechanism.
• Microscale 0,05 mm for precise depth setting.

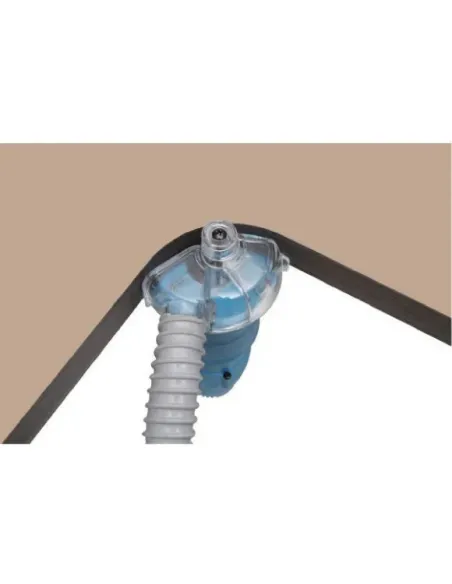

• A transparent adjustable cover with an integrated extraction nozzle.
• Braked bearing preventing damage of the workpiece.
• Supplied with a carbide radius cutter R2mm

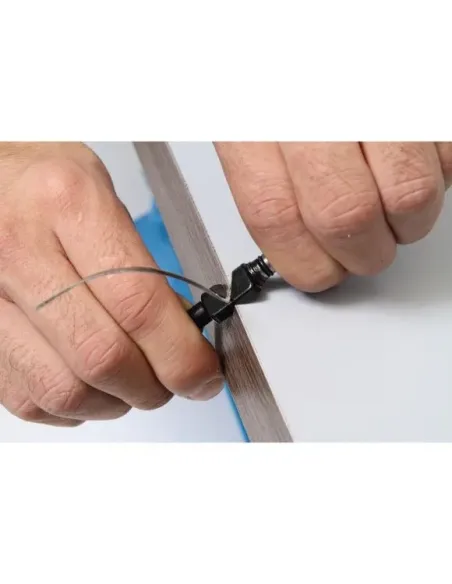

• Built-in scraper for removal of sharp edges.
• Can be fitted into the IGM edgebanding work table.
• Fine and accurate setting of routing depth.
• Raised support surfaces over the ABS edge.
• Braked bearing.

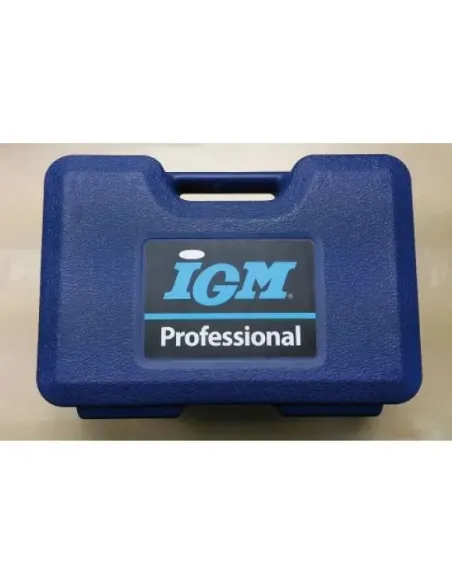

• Packed in a plastic case.

PD80 edge trimmer is designed for safe and accurate rounding or chamfering of furniture tape edges of wood, PVC, ABS, veneer or laminated edgebands or edge tape.

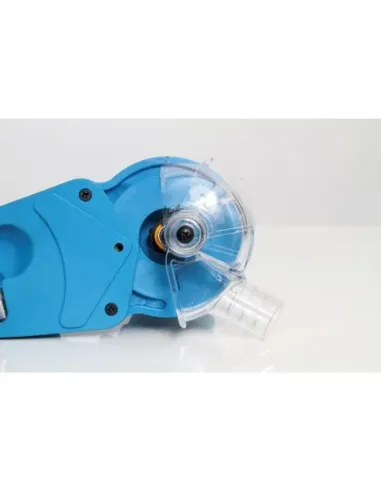

The unique construction of the trimmer with two holding knobs allows stable operations. The motor spins at 30,000rpm, providing the power and durability for deep cuts. Thanks to its guiding plate, holding knobs and unique construction, the trimmer is amazingly stable. It is equipped with a transparent safeguard cover which copies the surface and offers perfect visibility of your work. The lower part of the cover is fitted with a guide bearing. This eliminates damage or scratches from the rotating bearing. The depth is simply and accurately established by rotation of the base, 1 rotation meaning 2 mm, the precise setting can also be read on a scale with a vernier (resolution 0,05 mm).

Type: PD80
Rating: Craft
Power 230V: 450 W
Speed: 30.000 rpm
Height Adjustment: 16 mm
Collet : 6 mm
Length x Width x Height: 240 x 90 x 205 mm
Weight: 2,3 kg

Supplied with:
• R2 mm shank cutter
• Set of spanners
• Storage box
