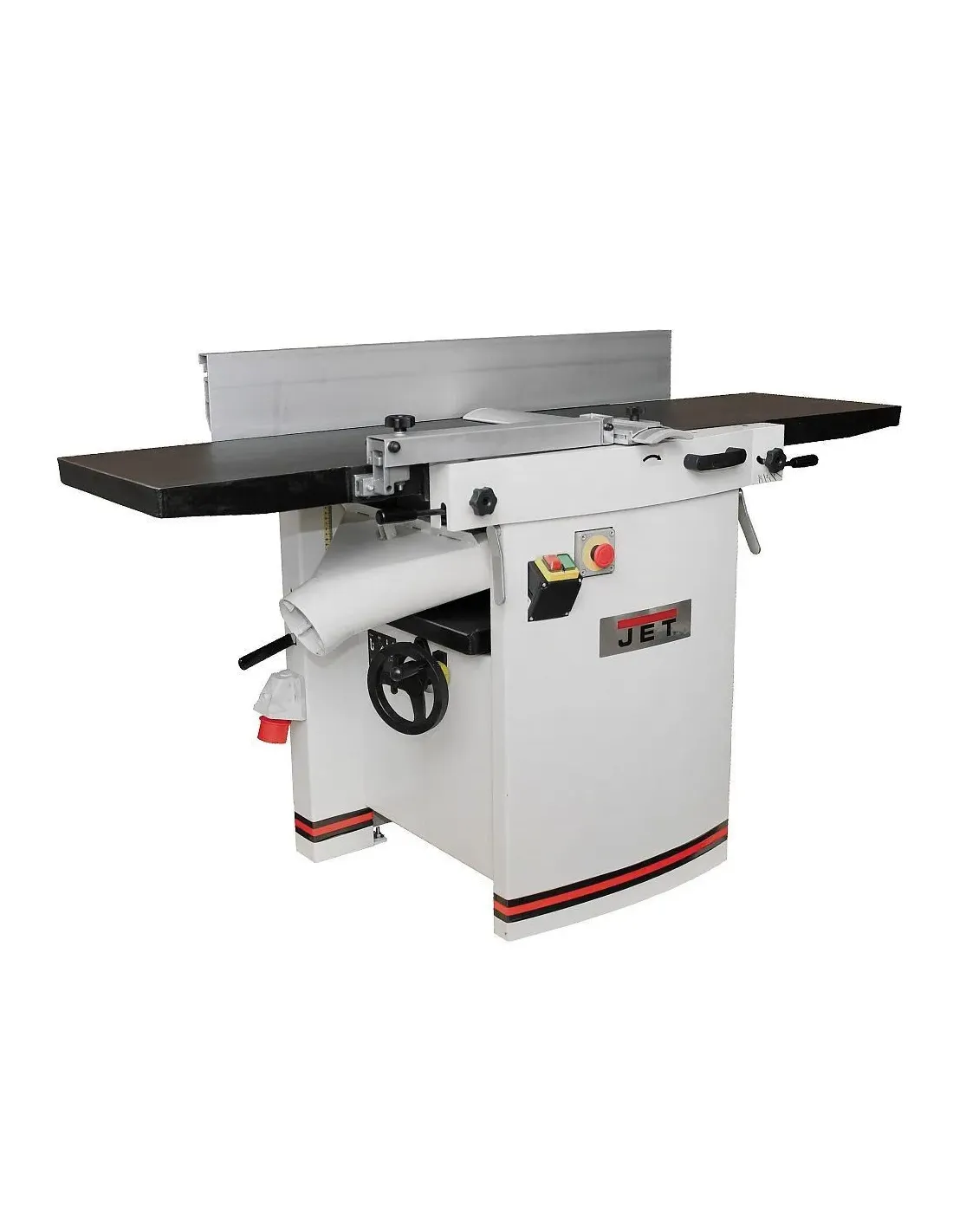

JET JPT-410 Planer Thicknesser

• Long adjustable cast iron surface tables.
• Easy switch between functions.
• Simultaneous lift of tables with just one hand.
• Height setting on both tables.
• Spiral cutterblock with 3 flutes.
• Width of planing 407 mm.
• Powerful 3,0kW motor.

You can comfortably lift the cast iron surfacing to change the function with just one hand. Switching from surface planing to thicknessing couldn‘t be easier. With its long table and precision fence, accuracy comes as standard as well as a super finish every time, thanks to the 3 bladed cutter block. Easy eccentric rod adjustment of the infeed table. Eccentric adjustment of the out table as well (JPT-310 and JPT-410) Dust extraction outlet keeps the machine clean when connected to a suitable dust extraction system. Machine for trade, workshops or maintenance, as well as for a wide range of jobs.

Machines for professional work, maintenance or hobby work, featuring a wide range of application.

• Type: JPT-410-HH
• Rating: Professional
• Power Input / Output (400V): 4,5kW / 3,0kW
• Speed: 5500 rpm
• Feed speed: 7 m/min.
• Cutterblock diameter: 70 mm
• Max. Material Removal when Thicknessing: 4,5 mm
• Max. Material Removal when Planing: 3 mm
• Max. Thicknessing Height: 3-225 mm
• Max. Width of Planing: 407 mm
• Length of Table: 1400 mm
• Dust Extraction Outlet: 120 (100) mm
• Length x Width x Height: 1660x 870 x 1000 mm
• Weight: 330 kg
