PROXXON FF 250/BL MICRO Mill
    PROXXON FF 250/BL MICRO Mill

    PROXXON FF 250/BL MICRO Mill

    109490
    BGN3,131.94
    • Variable speed pre-selection from 400 - 6.000rpm
    • Solid plane-milled steel compound table with 3 T-slots
    • Digital speed indication
    • Tool holder uses ER 16 (DIN ISO 15488) collets
    • Supplied with 6mm, 8mm and 10mm collets

    Description

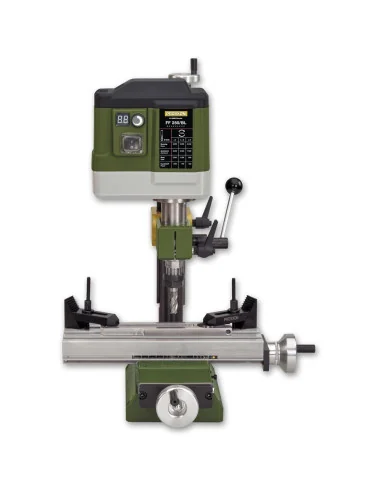

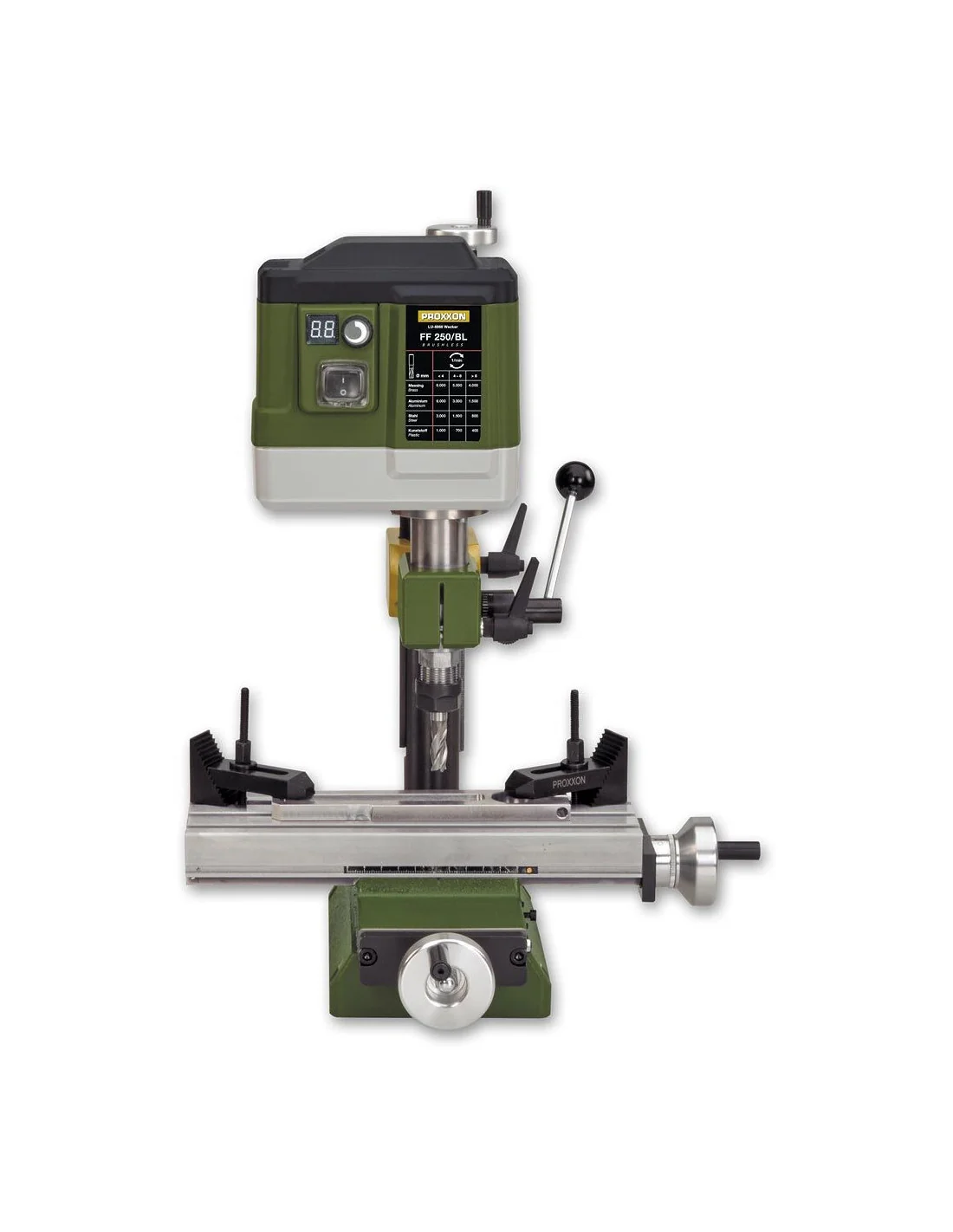

    The FF 250/BL is a stand alone mill/drill, and a high quality addition to the PROXXON Micromot range of engineering machines. The FF 250/BL features variable speed pre-selection from 400 - 6.000rpm with digital speed display. Speed sensors guarantee high torque also in the lower speed range. A rotational speed chart on the front of the housing shows the appropriate spindle speeds for the most common applications. The headstock swivels through 360°, and tilts 90° left and right. The mill/drill’s table offers X-Y travel, longitudinally and cross-wise respectively of 110 x 70mm, with 3 T-slots. The tool holder uses ER 16 collets. The FF 250/BL is supplied with 6mm, 8mm and 10mm collets.

    Product Details

    Spindle Speed
    400 - 6,000 rpm (Var)
    Spindle Travel
    30 mm
    Lateral Table Movement
    170 mm
    Longitudinal Table Movement
    65 mm
    T Slot Size
    12 mm x 8 mm
    Spindle Taper
    ER16 Collet
    End Milling Capacity
    10 mm
    Face Milling Capacity
    10 mm
    Throat
    65 mm
    Diameter of Column
    35 mm
    Max Drilling Mild Steel
    10 mm
    Nose of Spindle to Table [Max]
    200 mm
    Table Size
    270 mm x 80 mm
    Head Tilt
    90° - 0° - 90°
    Overall L x W x H
    180 mm x 130 mm x 500 mm
    Plug Fitted
    UK 3 pin plug
    Power
    250 W
    Nett Weight
    17 kg
    Rating
    Home/Light Trade
    Voltage
    230 V
