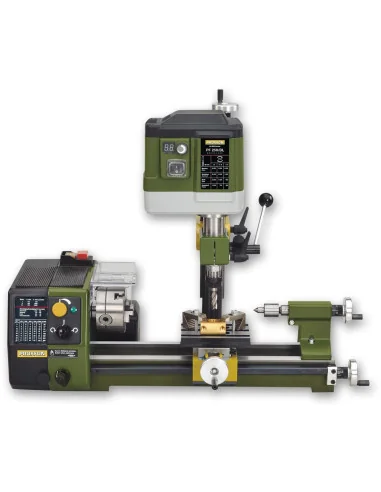

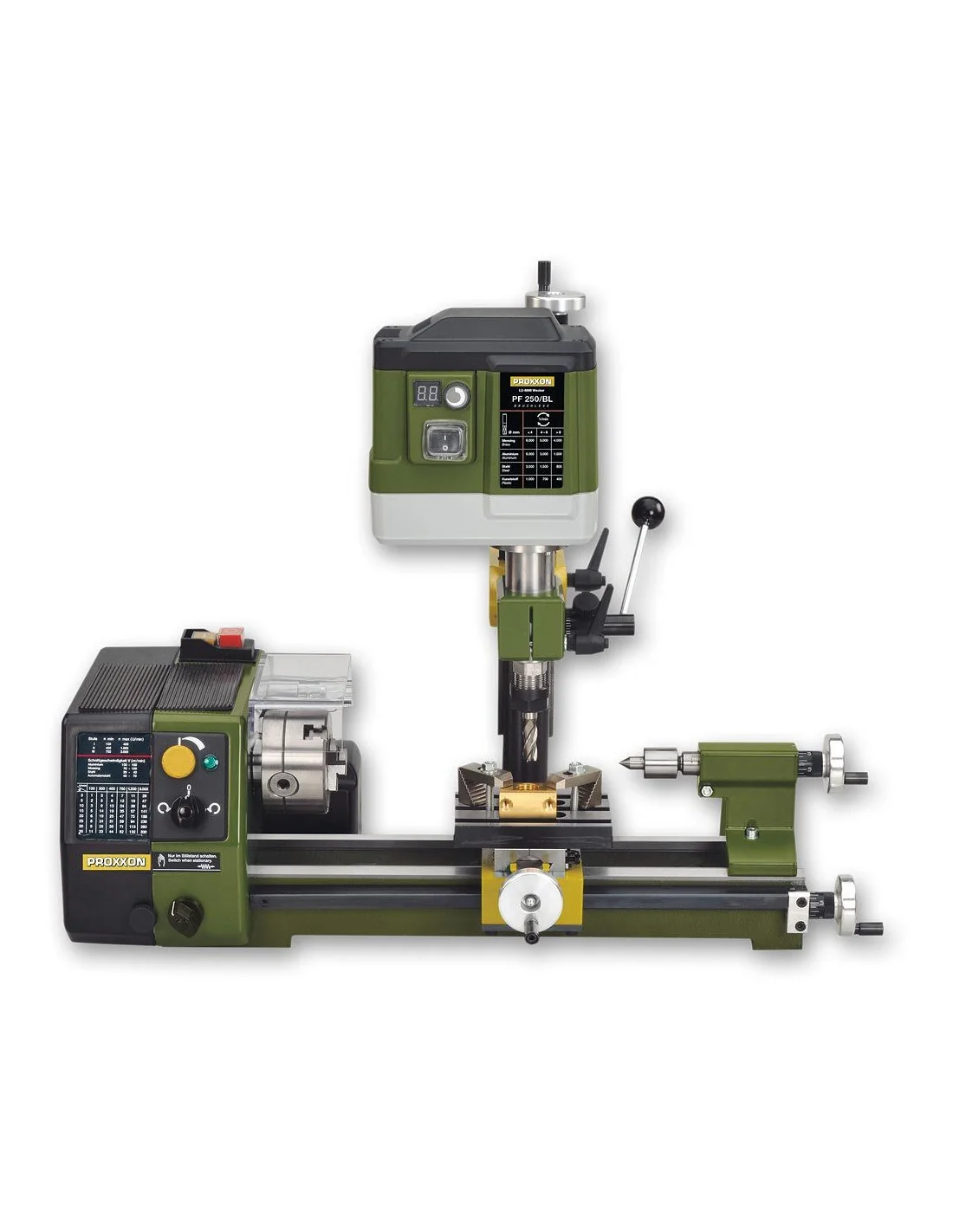

The milling PF 250/BL is designed and built for milling and drilling on a PROXXON PD 250/E or PD 400 lathe. Both of which are already drilled accept this mill/drill head. The mill/drill’s table replaces the lathe's top slide, thus adding a compound table, with X-Y travel being longitudinally and cross-wise respectively of 110 x 70mm, with 3 T-slots. The millhead tilts up to 90° left and right. Speed can be pre-selected from 400 - 6,000rpm, the head features a digital speed indication. Speed sensors guarantee high torque also in the lower speed range. The tool holder uses ER 16 collets, the PF 250/BL is supplied with 6mm, 8mm and 10mm collets. A rotational speed chart on the front of the housing shows the appropriate spindle speeds for the most common applications.
