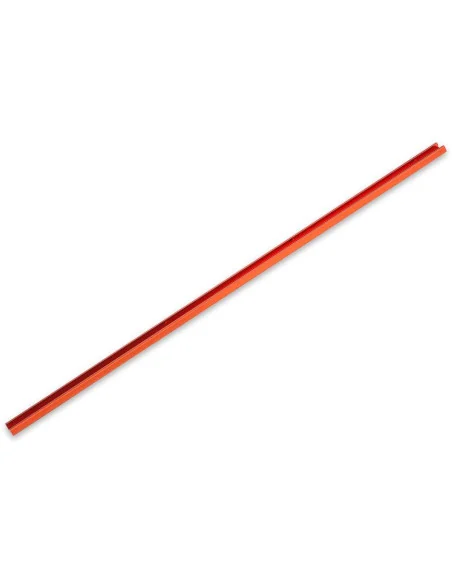

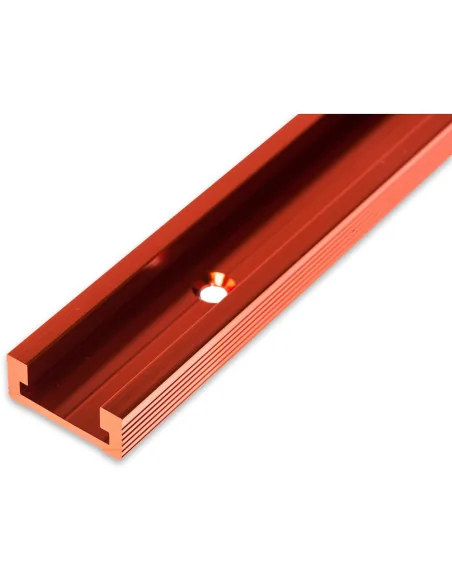

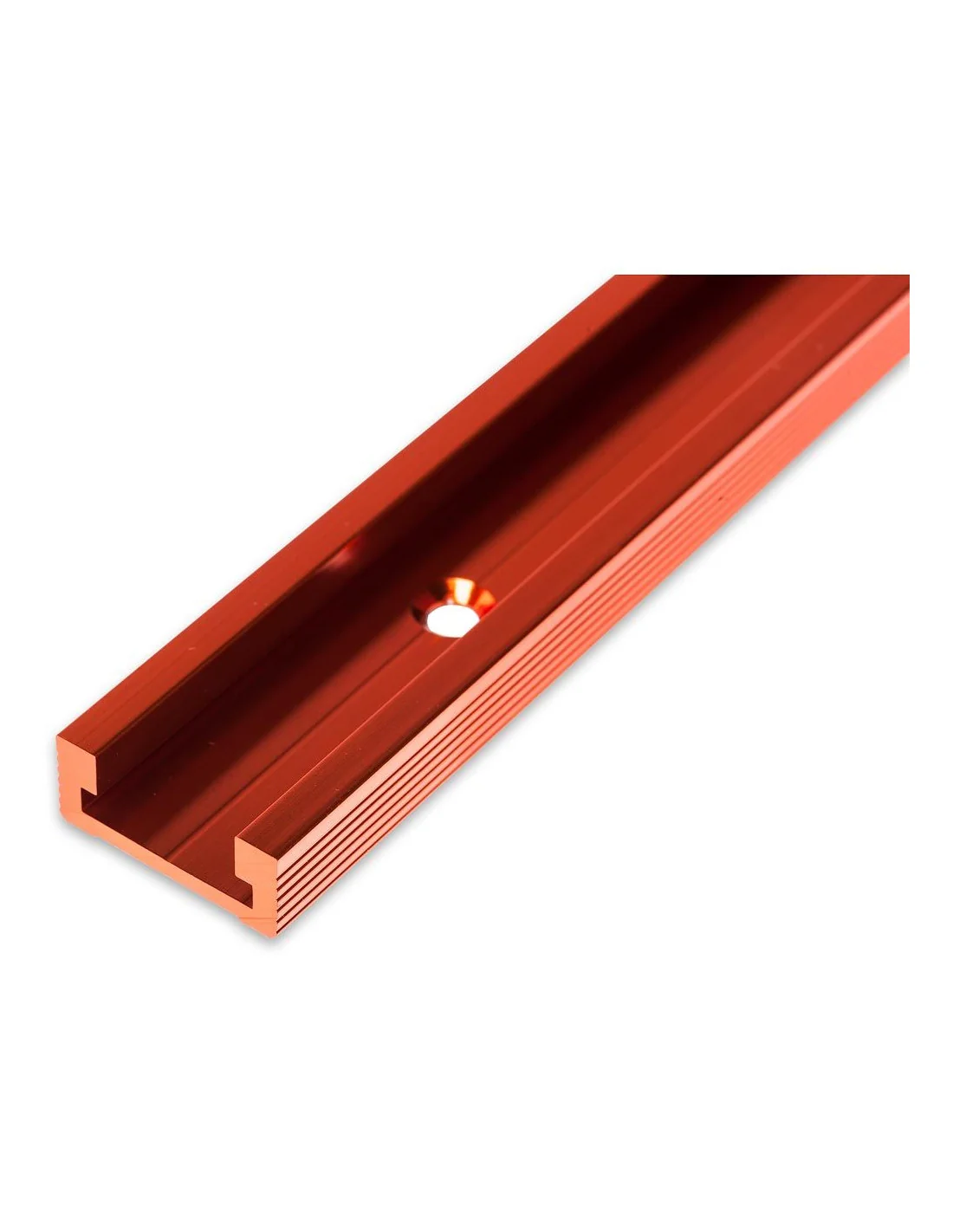

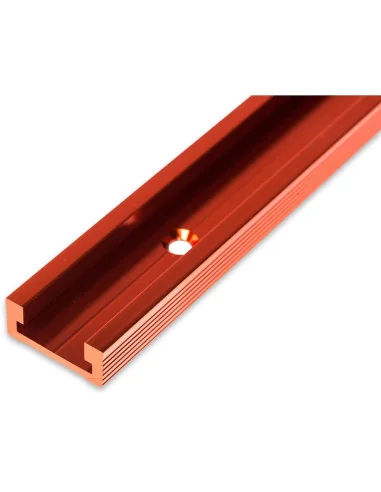

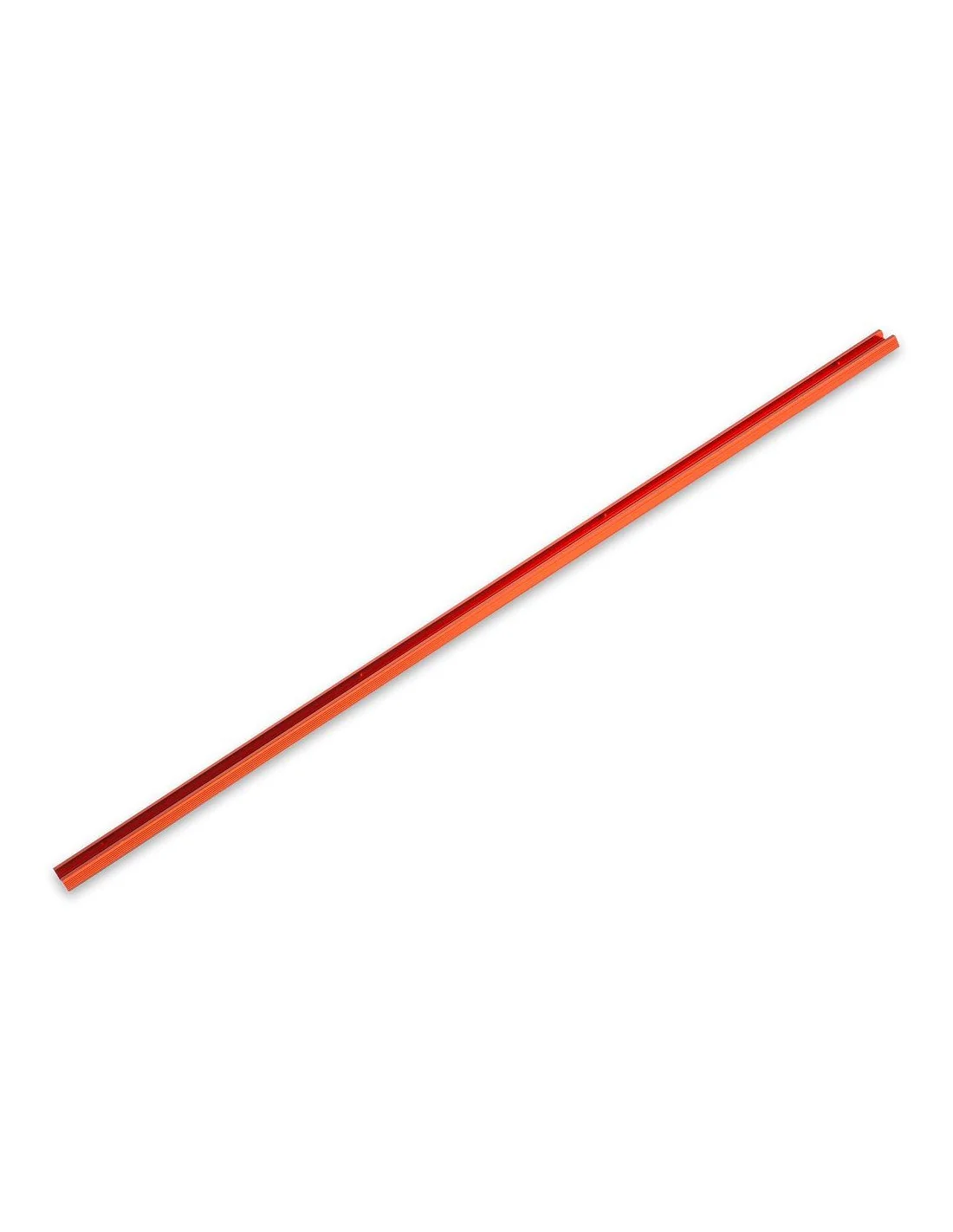

UJK Mitre Slot Track

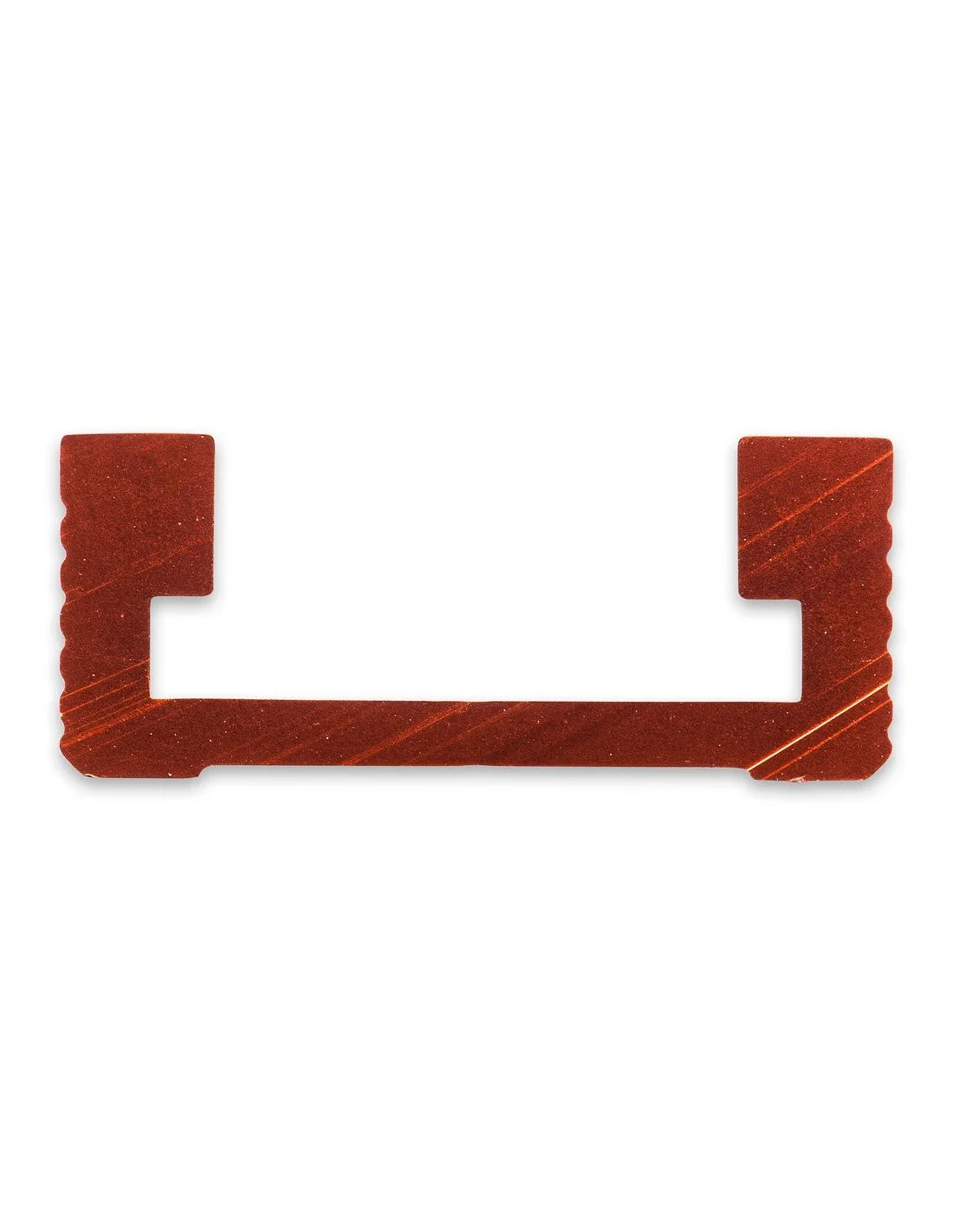

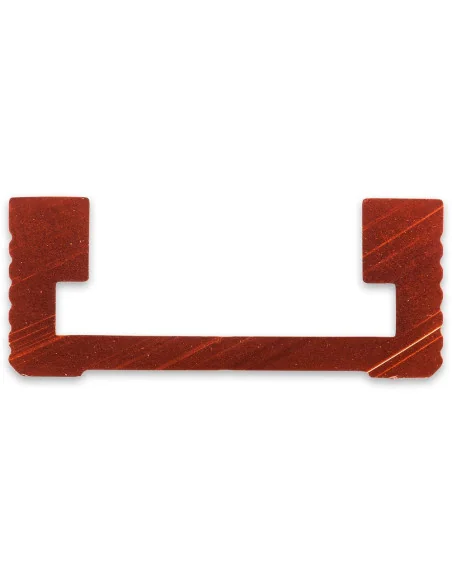

The UJK mitre slot track makes it easy to add a mitre fence facility to a custom built router table, saw table or bandsaw table. It is equally useful for a workbench that needs to incorporate a mitre fence. The track is anodised aluminium for its durability. All it requires is a routed groove 31mm wide by 13mm deep. Alternatively, you can create laminated table using a base and 12.7mm (1/2" ) thick material on either side of the track. Securing the track in the groove is easy with pre-drilled, countersunk holes every 270mm. The external measurements overall are 915mm(36") long, 31 x 12.7mm deep and the T-slot is 19 x 24 x 9.5mm deep. With its 19mm wide channel, the mitre slot track will work with any standard 19 x 9.5mm (3/4" x 3/8") mitre gauge bar with or without a T-facility. Supplied in 915mm lengths, the track is easily cut with a hacksaw to a different size if required.
