Veritas Wonder Dogs

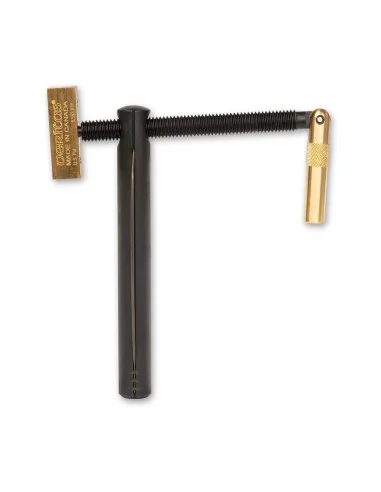

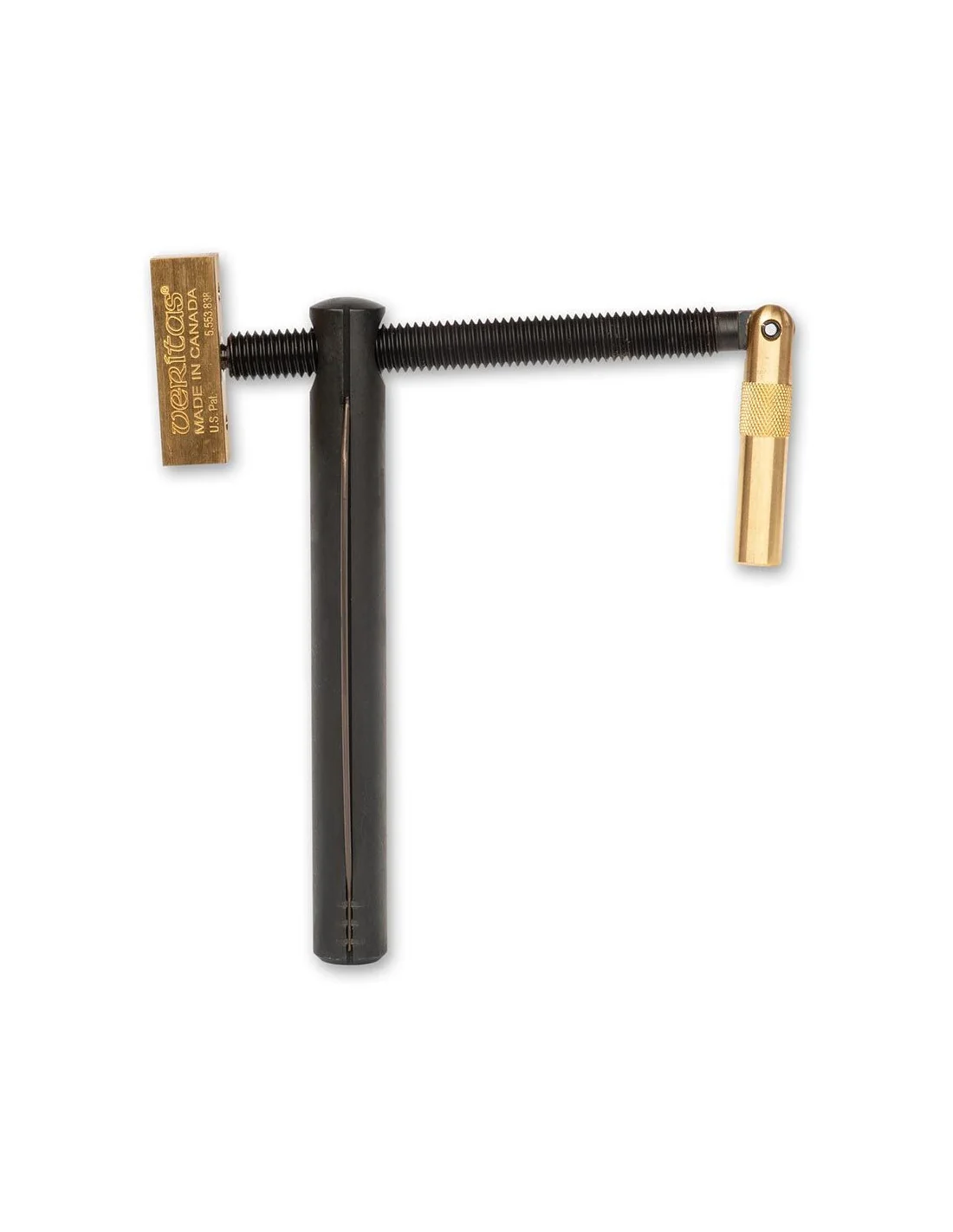

Hugely versatile bench top fittings, which come in very useful for all sorts of workholding on your bench top. They make an excelent alternative to a tail vice, albeit sliightly lighter duty. Veritas Wonder Dogs are basically bench dogs with a length of threaded bar through the top. The bar features a swivel handle one end and a brass clamping face at the other. The Wonder Dog stem, drilled and tapped with at 3°, ensures that work is held tight onto the bench top. The stem length is 165mm with a spring retainer running done the length to prevent the stem slipping in the dog hole. The brass clamping face is 50mm x 13mm, two holes in the face allow you to attach a custom shaped wooden face if necessary. All that is required to use a Veritas Wonder Dog is a 19mm hole.-bg
